Floor drain FURO 007

Floor drain FURO 007

Stainless steel floor drain for public wet areas such as swimming pools, shower rooms, changing rooms, saunas, and spa facilities.
  • The drain is adapted for public wet areas such as swimming pools, shower rooms, and spa facilities with barefoot-friendly grates that ensure good drainage.

  • Supplied as standard with a "Classic" grate in load class K3.

  • Removable water trap with handle enables easy cleaning and maintenance.

  • Flexible for various joists and construction techniques.

  • 360° rotatable and tiltable outlets allow for easy installation regardless of floor type.

  • Made from acid-resistant stainless steel (EN 1.4404) for long-lasting performance and durability.

  • Equipped with EPDM rubber seals for a secure and tight installation.

  • Available in stock for immediate delivery.



Installation:

  • Delivered pre-assembled and covered to prevent concrete from seeping into the drain during casting.
  • Spacer strips are included on the adhesion flanges for resin floors.
  • Sturdy mounting ears for different anchoring in the joist are included.
  • Fixtures and adjustable legs for easy installation and height adjustment are offered. See Installation Accessories section.
  • K3 For areas without traffic. Tested acc. to EN 1253-1 with 2 kN load.
  • L15 For areas with light weight traffic. Tested acc. to EN 1253-1 with 10 kN load.

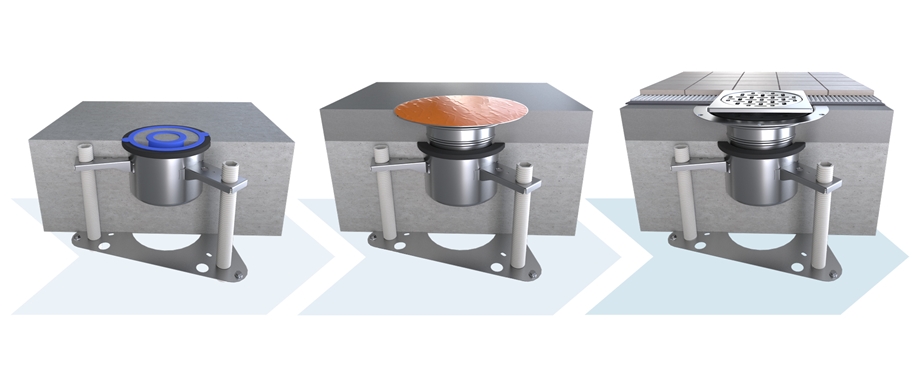

  • Utilize the drain's flexibility for various joists and construction techniques. The example above shows embedding in two steps.

  • Use the drain's adaptability for different floor types and its adjustability during installation.

  • Fixtures and adjustable legs facilitate securing the drain before casting. Easy height and angle adjustment using a screwdriver.

Immediate delivery

Variants

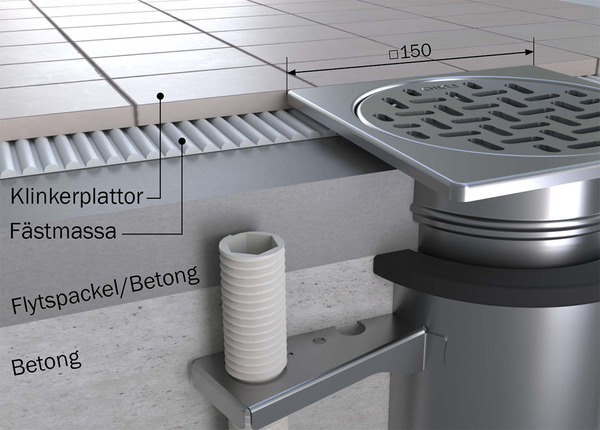

Clinker floor K3

Clinker floor K3

Floor material: Clinker in adhesives
Water proofing: Floor without waterproofing
Water proofing drain flange: None

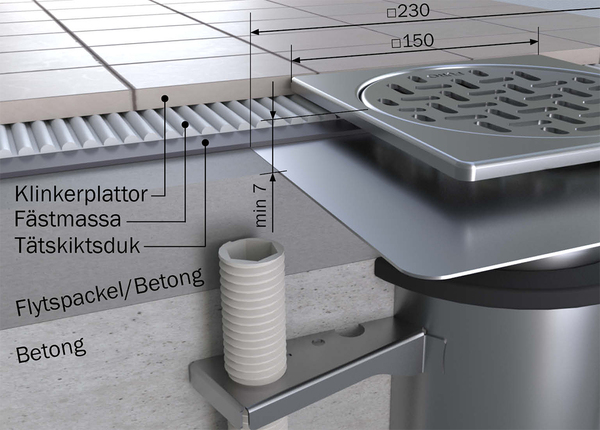

Clinker floor K4

Clinker floor K4

Floor material: Clinker directly on waterproofing layer
Water proofing: Waterproofing layer that can be rolled/spread and connected to a smooth stainless steel flange
Water proofing drain flange: 50 mm wide stainless adhesive flange

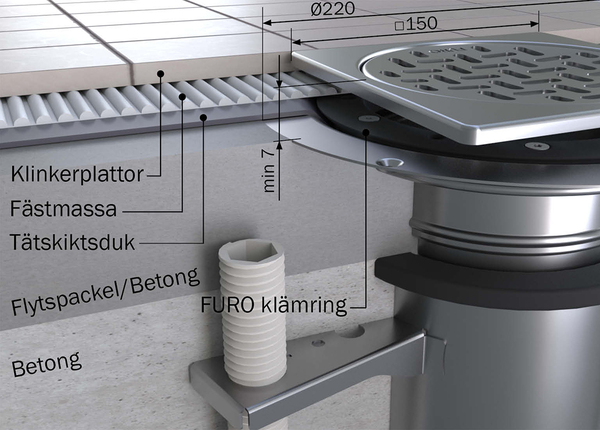

Clinker floor K5

Clinker floor K5

Floor material: Clinker directly on waterproofing layer
Water proofing: Clinkers on sandwiched waterproofing membrane
Water proofing drain flange: Clamping flange

Clinker floor K5 on wooden beams

Floor material: Clinker directly on waterproofing layer
Water proofing: Clinkers on sandwiched waterproofing membrane
Water proofing drain flange: Clamping flange

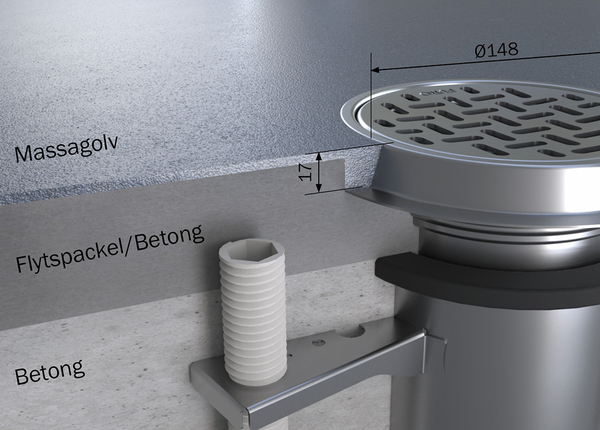

Resin flooring

Resin flooring

Floor material: Resin flooring
Water proofing: Compound floor
Water proofing drain flange: Recess for resin floor

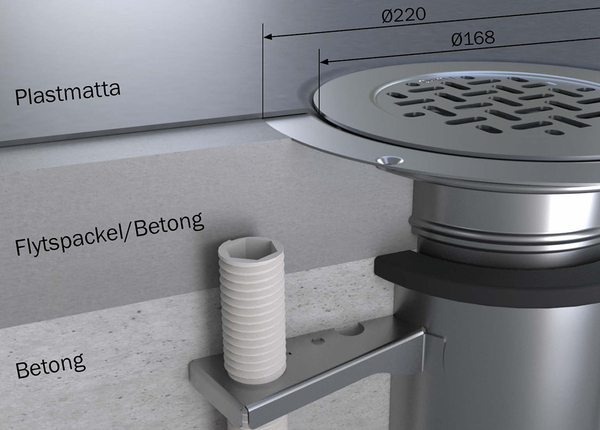

Vinyl flooring

Vinyl flooring

Floor material: Vinyl flooring 1,5-4 mm
Water proofing: Vinyl flooring
Water proofing drain flange: FURO clamping flange

Vinyl flooring on wooden beams

Floor material: Vinyl flooring 1,5-4 mm
Water proofing: Vinyl flooring
Water proofing drain flange: FURO clamping flange

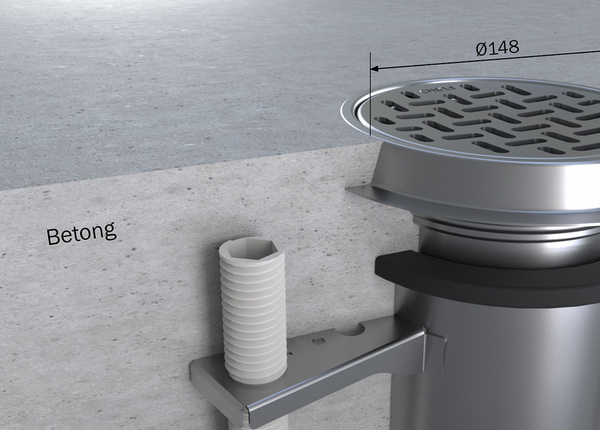

Concrete floor

Concrete floor

Floor material: Concrete floor
Water proofing: Floor without waterproofing
Water proofing drain flange: None

Dimensions for FURO 007 floor drain

For more information, see the section:

"Water flow, total height, upper part depth, and slope towards outlet".


Construction dimensions for FURO 007 floor drain:

S1 = Ø 380 mm
​​​​​​​F1 = Ø 320 mm

Drains and channels always have a connection pipe and a flow path to consider. The flow path is always measured at the so-called bottom line of the pipe.

To simplify product selection, we specify the total height (H) of our drains and channels. The total height is the distance from the finished floor surface down to where the water exits the product. For bottom outlets, the measurement point is where the socket begins.

The total height (H) always consists of the depth of the upper part (D) plus the outlet part of the product. If the depth of the upper part is increased, the total height also increases, affecting the product’s flow path.

Dimensions for FURO 007:

Depth of the upper part (D) varies depending on the flooring type. Below are the measurements and relevant remarks:

  • Resin flooring: 32–52* mm
  • Vinyl flooring: 42–62* mm
  • Tiles K3: 32–52* mm
  • Concrete floor: 32–52* mm
  • Tiles K4: 26–42* mm – (D) is measured to the waterproofing level
  • Tiles K5: 42–62* mm – (D) is measured to the waterproofing level
  • Vinyl flooring on wooden beams: 42 mm – (D) is measured to the waterproofing level


*The range indicates that the upper section is adjustable.

The total height (H) is then as follows:

  • Resin flooring: 132–152 mm
  • Vinyl flooring: 142–162 mm
  • Tiles K3: 132–152 mm
  • Concrete floor: 132–152 mm
  • Tiles K4: 133–165 mm
  • Tiles K5: 149–181 mm
  • Vinyl flooring on wooden beams: 142 mm
  • Tiles K5 on wooden beams: 149 mm


If an extension part or inlet part is chosen, the total height (H) increases by 50 mm.
If a raised upper section is chosen, the total height (H) increases by 25 mm.

Slope towards outlet:
The slope is adjusted to the product and flooring type.

S 75

Side outlet Ø75 mm

Capacity 1,3 l/s

B 75

Bottom outlet Ø75 mm

Capacity 1,7 l/s

B 110

Bottom outlet Ø110 mm

Capacity 1,2 l/s

B 75 without attachment lugs

Bottom outlet Ø75 mm

Capacity 1,7 l/s

Trap

Trap

Trap included as standard.
Can be retrofitted.

Part no. 133VH22

Trap, mechanical odor stopper

Trap, mechanical odor stopper

Trap with mechanical odor stopper. Replaces standard trap.
Can be retrofitted.

Part no. 133VL12

Trap, odor and backflow prevention

Trap, odor and backflow prevention

Trap with backflow and odor prevention.
Replaces standard trap.
Can be retrofitted.

Part no. 133VLB12

Trap, strainer with secure locking

Trap, strainer with secure locking

Trap for strainer with secure locking.

Part no. 133VHLS2

Strainer Classic

Strainer Classic

The strainer is included as standard.
Load class: K3.

Part no. 133SC1K1

Strainer Classic, with cutout

Strainer Classic, with cutout

Strainer with cutout Ø 40 mm.
Load class: H1.5.

Part no. 133SCU1K1

Sil Classic, with screw locking

Sil Classic, with screw locking

Strainer with screw locking. Works only with a trap in the drain. For extra safety, such as in detention applications, choose the accessory safety torx.
Load class: L15

Part no. 133SCL1L2

Strainer Classic, acid-resistant

Strainer Classic, acid-resistant

Strainer Classic manufactured from acid-resistant stainless steel EN 1.4404. A suitable choice for swimming pool facilities.

Load class: L15.

Part no. 133SC1L2

Strainer Classic, for vinyl flooring

Strainer Classic, for vinyl flooring

The strainer is included as standard.
Load class: K3.

Part no. 133SC3K1

Sil Classic with cut-out, vinyl flooring

Sil Classic with cut-out, vinyl flooring

Sil Classic for vinyl flooring with a Ø 40 mm cut-out.
Load class: H1.5.

Part no. 133SCU2K1

Sil Classic with screw locking, vinyl flooring

Sil Classic with screw locking, vinyl flooring

Strainer with screw locking. Works only with a trap in the drain. For extra safety, such as in detention applications, choose the accessory safety torx.
Load class: L15

Part no. 133SCL2L2

Strainer Classic, acid-resistan for vinyl flooring

Strainer Classic, acid-resistan for vinyl flooring

Strainer Classic for vinyl flooring, made of acid-resistant stainless steel EN 1.4404. A suitable choice for swimming pool facilities.
Load class: L15.

Part no. 133SC2L2

Cover lid

Cover lid

Lid for covering. The lid is not gas-tight.
Load class: L15

Part no. 133TL1L1

Cover lid, vinyl flooring

Cover lid, vinyl flooring

Lid for covering. The lid is not gas-tight.
Load class: L15

Part no. 133TL2L1

Lifting tool

Lifting tool

Lifting tool for drain grates.

Part no. 1LK2

Gas-tight inner cover

Gas-tight inner cover

A cover that seals the drain and replaces the trap.

Part no. 133GIH2

Strainer basket

Strainer basket

Smaller filter basket.

  • Volume: 2.5 dl
  • Capacity: 1.2 l/s

Part no. 133SK12

Strainer basket, 5 dl

Strainer basket, 5 dl

Filter bucket suitable for drain without a trap and in a drain with additional extension part.

  • Volume: 5 dl
  • Capacity: 1.5 l/s

Part no. 133SK22

Sand trap 3 dl

Sand trap 3 dl

Sand trap suitable for siphon configuration and in a drain with additional extension part.

  • Volume: 3 dl
  • Capacity: 0.6 l/s

Part no. 133SF21

Extension part

Extension part

Extension part that provides space for extra large accessories.
Increases the total height by 50 mm.

Part no. 1VPA133

Raised upper part

Raised upper part

The elevation of the drain's upper part increases the total height of the drain by 25 mm.

Part no. 1VHO133

Inlet part

Inlet part

Inlet pipe Ø 50 mm.
Increases the total height by 50 mm.

Part no. 1VIN133

Radon sealing

Radon sealing

Factory-installed radon and waterproofing.

Part no. 1VRT

Grounding braid

Grounding braid

Grounding braid for equipotential bonding.

Part no. 1VJF

Mounting fixture, 200 mm

Mounting fixture, 200 mm

Mounting fixture FUROFIX. The mounting fixture provides easy adjustment from above.
Height: 200 mm.
Use with installation accessory "Bits for mounting fixture"

Part no. 1FUROFIX200

Bits for mounting fixture

Bits for mounting fixture

For easy adjustment of the mounting fixture.

Part no. 1BITS15

Mounting fixture, 300 mm

Mounting fixture, 300 mm

Mounting fixture FUROFIX. The mounting fixture provides easy adjustment from above.
Use with installation accessory "Bits for fixture."

Height: 300 mm.


Part no. 1FUROFIX300

Plastic mounting rod

Plastic mounting rod

Mounting rod that allows for easy adjustment from above.

  • Height: 300 mm
  • Foot diameter: 100 mm.

Use together with Installation accessories "Bits for plastic mounting rod".

Part no. 1SB40

Bits for plastic mounting rod

Bits for plastic mounting rod

For easy height adjustment of plastic mounting rod.

Part no. 1BITS16

Cutting template

Cutting template

Cutting template for vinyl flooring and waterproof membrane.

Part no. 133SM1
