Floor drain FURO 104

Floor drain FURO 104

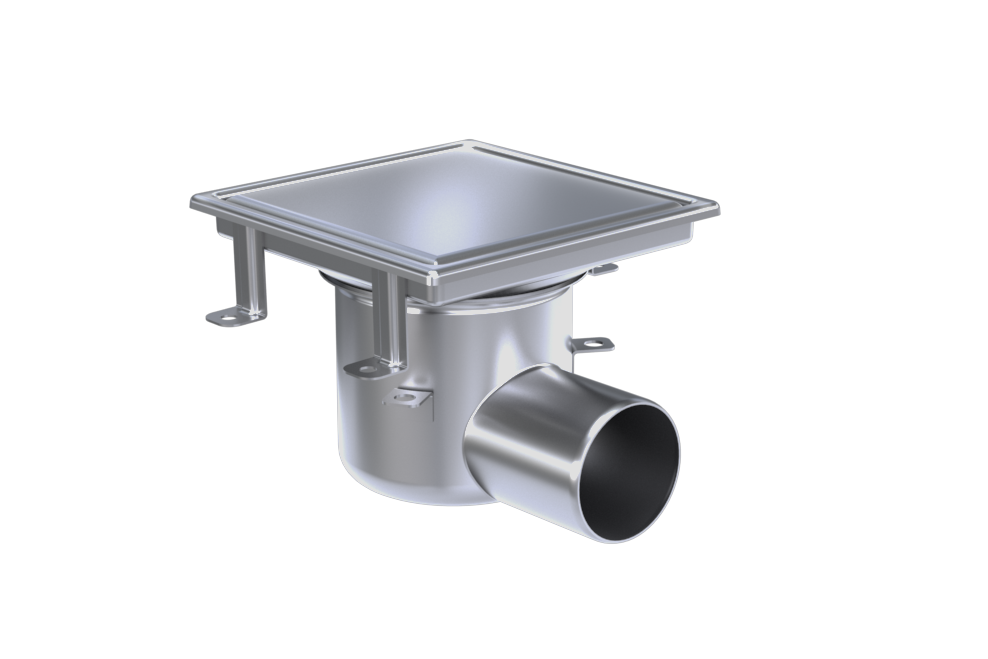

Stainless steel floor drain designed for kitchens, restaurants, and industrial environments with lighter loads. Multiple layered sizes available for quick delivery.
  • Dimensions: 173 x 173 mm

  • Removable trap with handle for easy cleaning.

  • Anti-slip grating in stainless steel for increased safety.

  • Made of acid-resistant stainless steel according to EN 1.4404 (SS 2348).

  • Adapted for multiple common floor types and features 360° rotatable and angle-adjustable outlets.

  • Equipped with EPDM rubber seals according to EN 681-1 type Wc.

  • Designed for embedding in concrete floors.

  • Available in stock and can be delivered immediately.



Installation

  • Delivered pre-assembled and covered to prevent concrete from running into the drain during pouring.
  • For mass floors, recess lists on attachment flanges are included.
  • Robust anchor ears for various anchoring in the ceiling are included.
  • Adjustable legs for easy installation and height adjustment are available. See the Installation Accessories section.
  • L15 For areas with light weight traffic. Tested acc. to EN 1253-1 with 10 kN load.

Immediate delivery

Variants

Clinker floor K1

Clinker floor K1

Floor material: Clinker in adhesives
Water proofing: Waterproofing layer that can be rolled/spread and connected to a smooth stainless steel flange
Water proofing drain flange: 50 mm wide stainless adhesive flange
Clinker floor K3

Clinker floor K3

Floor material: Clinker in adhesives
Water proofing: Floor without waterproofing
Water proofing drain flange: None
Clinker floor K4

Clinker floor K4

Floor material: Clinker directly on waterproofing layer
Water proofing: Waterproofing layer that can be rolled/spread and connected to a smooth stainless steel flange
Water proofing drain flange: 50 mm wide stainless adhesive flange
Clinker floor K5

Clinker floor K5

Floor material: Clinker directly on waterproofing layer
Water proofing: Clinkers on sandwiched waterproofing membrane
Water proofing drain flange: Clamping flange
Resin flooring

Resin flooring

Floor material: Resin flooring
Water proofing: Compound floor
Water proofing drain flange: Recess for resin floor
Vinyl flooring

Vinyl flooring

Floor material: Vinyl flooring 1,5-4 mm
Water proofing: Vinyl flooring
Water proofing drain flange: FURO clamping flange
Vinyl flooring on wooden beams

Vinyl flooring on wooden beams

Floor material: Vinyl flooring 1,5-4 mm
Water proofing: Vinyl flooring
Water proofing drain flange: FURO clamping flange
Concrete floor

Concrete floor

Floor material: Concrete floor
Water proofing: Floor without waterproofing
Water proofing drain flange: None

Dimensions for FURO 104 floor drain


For more information, see the section:

"Water flow, total height, upper part depth, and slope towards outlet".


Construction dimensions for FURO 104 floor drain:

S1 = 320 mm

F1 = 240 mm



Drains and channels always have a connection pipe and a flow path to consider. The flow path is always measured at the so-called bottom line of the pipe.

To simplify product selection, we specify the total height (H) of our drains and channels. The total height is the distance from the finished floor surface down to where the water exits the product. For bottom outlets, the measurement point is where the socket begins.

The total height (H) always consists of the depth of the upper part (D) plus the outlet part of the product. If the depth of the upper part is increased, the total height also increases, affecting the product’s flow path.

Dimensions for FURO 104:
Upper part depth (D) for different floor types:

  • Resin flooring: 36 mm
  • Vinyl flooring: 31 mm
  • Tiles K3: 36 mm
  • Steel-smoothed concrete floor: 36 mm
  • Tiles K4, K5: 22 mm


The total height (H) is then as follows:

  • Resin flooring: 153 mm
  • Vinyl flooring: 148 mm
  • Tiles K3: 153 mm
  • Steel-smoothed concrete floor: 153 mm
  • Tiles K4, K5: 146 mm
  • Vinyl flooring on wooden joists: 148 mm


If an extension part or inlet part is selected, the total height (H) increases by 60 mm.

Slope toward outlet:
The slope is adjusted according to the product and floor type.

S 75

Side outlet Ø75 mm

Capacity 1,6 l/s

B 75

Bottom outlet Ø75 mm

Capacity 1,8 l/s

B 110

Bottom outlet Ø110 mm

Capacity 1,6 l/s

Trap

Trap

Trap included as standard.
Can be retrofitted.

Part no. 126VH2

Trap with odor seal

Trap with odor seal

Trap with mechanical odor seal.

Part no. 126VL12

Closable trap

Closable trap

A trap that can be shut off with a key. When choosing accessories, an extension part is required.

Part no. 126VA2

Perforated plate, L15

Perforated plate, L15

Robust and easy-to-clean perforated plate.

  • Load class: L15.

Part no. Z-1SILR17171

Anti-slip grid grating, L15

Anti-slip grid grating, L15

Part no. Z-1GFL1717

Strainer basket

Strainer basket

Smaller filter basket.

  • Volume: 2.5 dl
  • Capacity: 1.2 l/s

Part no. 133SK12

Strainer basket, 5 dl

Strainer basket, 5 dl

Filter bucket suitable for drain without a trap and in a drain with additional extension part.

  • Volume: 5 dl
  • Capacity: 1.5 l/s

Part no. 133SK22

Sand trap 3 dl

Sand trap 3 dl

Sand trap suitable for siphon configuration and in a drain with additional extension part.

  • Volume: 3 dl
  • Capacity: 0.6 l/s

Part no. 133SF21

Lifting tool

Lifting tool

Lifting tool for grating and perforated plates.

Part no. 1LK1

Key for water trap

Key for water trap

Key for locking Vater trap 126VA2.

Part no. 1NV2

Extension part

Extension part

Provides space for extra-large accessories.
Increases the total height by 60 mm.

Part no. 1VPA126

Inlet part

Inlet part

Inlet part with connection Ø 50 mm.
Increases the total height by 60 mm.

Part no. 1VIN126

Radon sealing

Radon sealing

Factory-installed radon and waterproofing.

Part no. 1VRT

Grounding braid

Grounding braid

Grounding braid for equipotential bonding.

Part no. 1VJF

Fixed Drain Grate

Fixed Drain Grate

Grate secured with screws for enhanced safety.

Part no. 1VFG-GL

Without trap

Without trap

Floor drain without a trap. The trap can be retrofitted.

  • Capacity: 4 liters/second.

Part no. 1VSU126

Mounting, threaded rod

Mounting, threaded rod

Easy adjustment from above.

  • Height 300 mm.
  • Foot diameter = 100 mm.

Part no. 1SB30

Sealant Aqua Tät

Sealant Aqua Tät

Sealant Aqua Tät for plastic flooring. Used under the flooring when installing the clamping frame.

Part no. 1AQUAT40
