Telescopically adjustable and cuttable superstructure for terrace drain FURO 191. In stock for immediate delivery.

Upper section for terrace drain, designed to provide maximum flexibility in installations where there is a risk of freezing, such as on terraces, courtyards, and in garages. The telescopically adjustable design makes it easy to adapt the upper section to different construction heights. If needed, it can also be cut to fit perfectly into specific installations.

  • Delivered with a screwed-in stainless steel grating plate, ensuring optimal drainage and high durability.

  • Manufactured from acid-resistant stainless steel EN 1.4404 (SS 2348) for maximum corrosion resistance.

  • To be combined with FURO 191 outlet for a complete and reliable solution.

  • In stock for immediate delivery.

Technical specifications

Material: Acid-resistant stainless steel EN 1.4404 (SS 2348).
Dimensions (mm): 173 x 173
Height (cuttable):

  • L1: 160–260 mm
  • L2: 160–560 mm
  • L3: 160–860 mm

Grating plate: Screwed-in, stainless steel.
Application: Adapted for waterproofing on terraces, courtyards, and garages.
Approvals: FURO 191 meets the requirements of AMA Hus 18, sections JSE.171 and JSE.271. In the version with a 110 outlet, it also complies with Tätskiktsgarantier’s TR-1 regulations for roof drains.

  • L15 For areas with light weight traffic. Tested acc. to EN 1253-1 with 10 kN load.
  • M125 For areas with truck traffic. Tested acc. to EN 1253-1 with 85 kN load.

Immediate delivery

Variants

Terrace joists

Terrace joists

Floor material: Paving stones/Slabs
Water proofing: Bitumen
Water proofing drain flange: 150 mm perforated adhesive flange

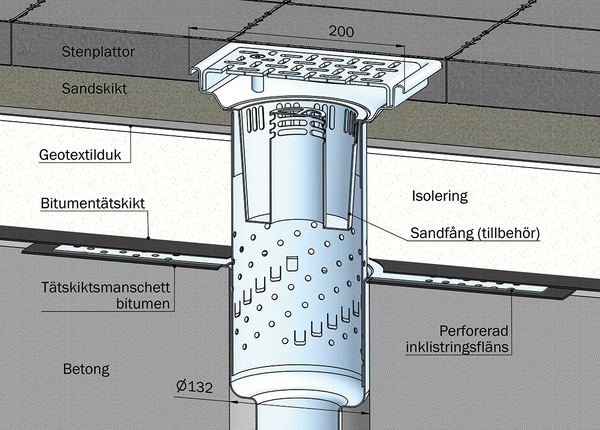

Dimensions for terrace drain FURO 191

*Overbuild height (adjustable):

  • L1 = 160–260 mm
  • L2 = 160–560 mm
  • L3 = 160–860 mm

**The support ring is used for mastix and cast asphalt as reinforcement.


Capacity measurement:

The capacity measurement for the terrace drain has been carried out in accordance with the requirements for roof drains in SS-EN 1253-2, with an overlay height of 160 mm.


Vattenpelare (mm) = Water column (mm)
Flöde (l/s) = Flow (l/s)

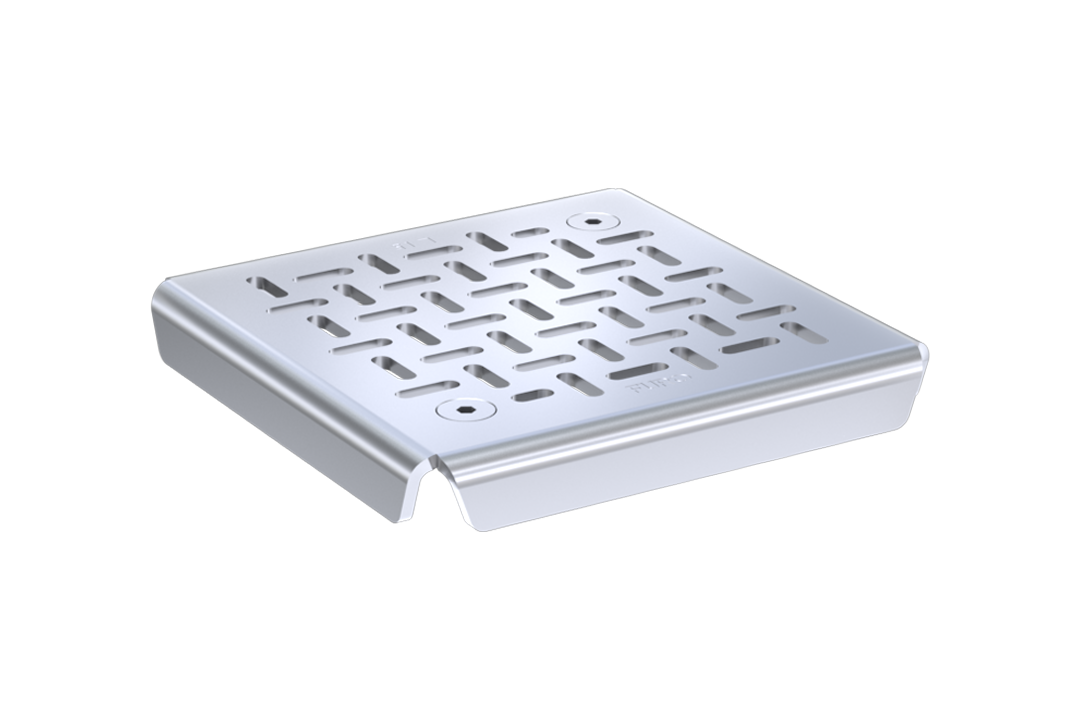

Silplåt L15 fastskruvad

Part no. Z-1SILTS17172

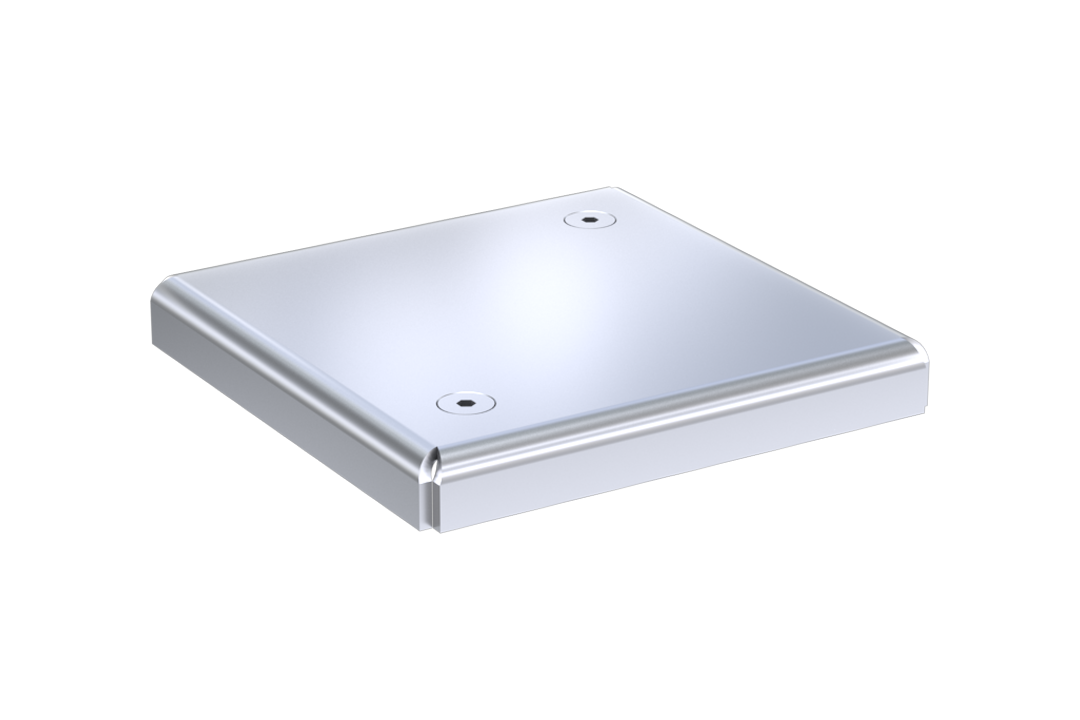

Täcklock L15 fastskruvad

Part no. Z-1HLL17171

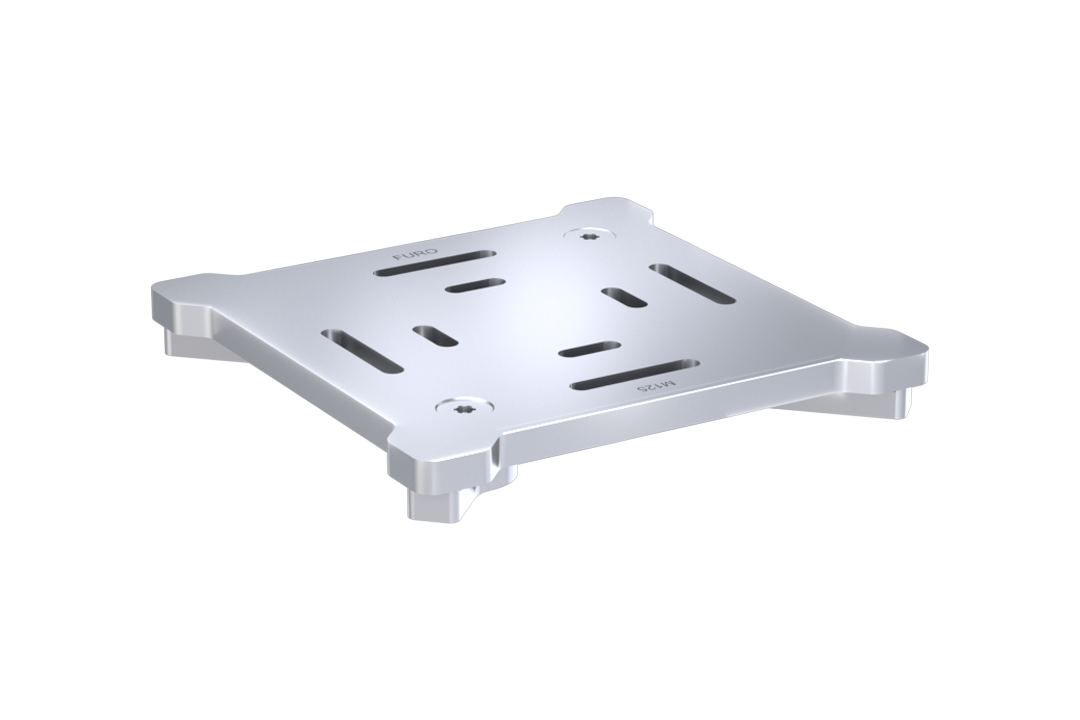

Spaltlock M125 fastskruvad

Part no. Z-1SLMTS17172

Kupolsil fastskruvad

Part no. Z-1KSHS17172

Sand trap, 5 dl

Sand trap, 5 dl

  • Volume: 5 dl
  • Capacity: 5.5 l/s

Part no. 126SF52

SH.png BVB.svg
