Floor drain for shower and changing areas FURO 023

Functional and barefoot-friendly stainless steel floor drain for public environments. Ideal for pools, spas, gyms, and other public shower and changing rooms.

Functional and barefoot-friendly design that provides safe and comfortable use. The channel is aesthetically pleasing and designed for bathing and SPA facilities.
Durable and stable grate plates that are comfortable to walk on with bare feet. The grate plates can be offered with fixed locking (see section on additional details).
Manufactured from acid-resistant stainless steel, quality EN 1.4404, for high durability and resistance to corrosion in the salt- and chlorine-rich environments offered by swimming facilities.
Easy-to-maintain and accessible parts that simplify cleaning and upkeep.

Variable lengths:

The channel's width is 150 mm, and the length can be customized from 400 to 3000 mm, in 100 mm intervals.

Installation:

Delivered with a cover to prevent concrete from penetrating during casting.
Robust mounting ears for secure anchoring in the ceiling structure.
When installed in a massage floor, spacer strips for bonding flanges are included.
Height-adjustable support legs 1SB40 allow for easy adjustment from above (see Installation Accessories).

L15 For areas with light weight traffic. Tested acc. to EN 1253-1 with 10 kN load.

FURO 023 är konstruerad för att uppfylla kraven i den gällande normen för golvbrunnar, SS-EN 1253-1.

För att bibehålla det rostfria ytskiktet i en salt- och klorrik miljö ska rännor och brunnar dagligen spolas av med färskvatten samt tömmas på föremål som kan orsaka rostsmitta (järnhaltiga föremål som ex.vis hårspännen och dylikt som rostar och ”smittar” den rostfria ytan). Rännan ska skrubbas överallt regelbundet minst en gång per månad med Scotch-Brite. Stålull och andra järnhaltiga material får ej användas.

Variants

Variable length (mm):

Length (L) = 400–3000 (in increments of 100)
Fixed width: 150 mm

The dimensions refer to the channel's grating dimensions.

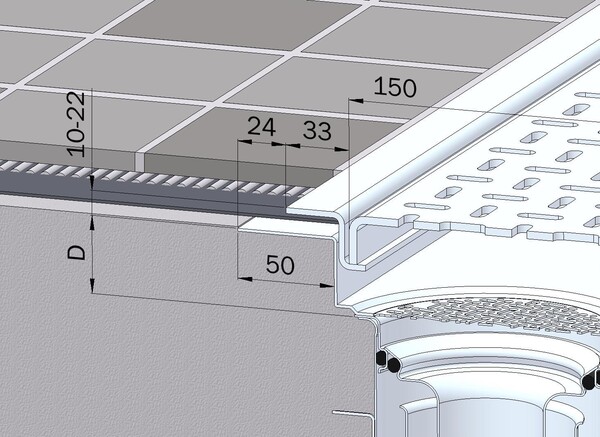

Clinker floor K4

Floor material: Clinker directly on waterproofing layer

Water proofing: Waterproofing layer that can be rolled/spread and connected to a smooth stainless steel flange

Water proofing drain flange: 50 mm wide stainless adhesive flange

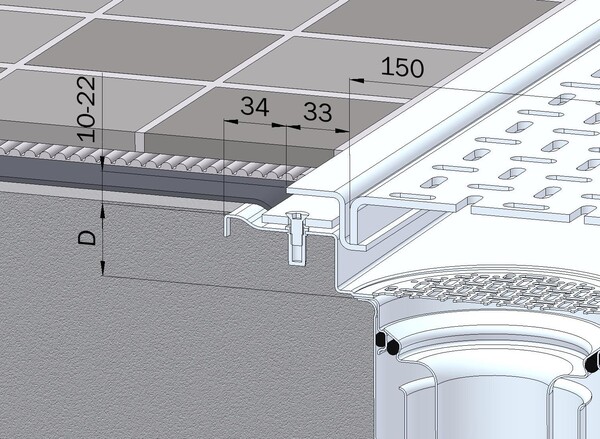

Clinker floor K5

Floor material: Clinker directly on waterproofing layer

Water proofing: Clinkers on sandwiched waterproofing membrane

Water proofing drain flange: Clamping flange

Resin flooring

Floor material: Resin flooring

Water proofing: Compound floor

Water proofing drain flange: Recess for resin floor

Vinyl flooring

Floor material: Vinyl flooring 1,5-4 mm

Water proofing: Vinyl flooring

Water proofing drain flange: FURO clamping flange

Vinyl flooring on wooden beams

Floor material: Vinyl flooring 1,5-4 mm

Water proofing: Vinyl flooring

Water proofing drain flange: FURO clamping flange

Dimensions for FURO 023 floor channel:
*The product has a slope towards the outlet. For more information, see the section:

Water flow, total height, upper part depth, and slope towards the outlet.

Construction dimensions for floor channel FURO 023:

S_1: = B + 460 mm
F₁= B + 400 mm

Drains and channels always have a connection pipe and their water flow (V.g.) to consider. Water flow is always measured from the so-called bottom line of the pipe.

To facilitate product selection, we specify the total height (H) of our drains and channels. The total height is the distance from the finished floor surface to where the water exits the product. For bottom outlets, the measurement point is where the spigot begins.

The total height (H) is always made up of the top depth (D) plus the outlet section of the product. If the top depth is increased, the total height will also increase, affecting the product's water flow.

Dimensions for FURO 023:

The top depth (D) can be selected between 56, 100 and 150 mm (56 mm is standard for lengths up to 2000 mm).
For tile types K4 and K5, the top depth (D) varies between 36, 80, and 130 mm (36 mm is standard for lengths up to 2000 mm).
Thus, the total height (H) of FURO 023 varies between 173, 217 and 267 mm (173 mm is standard for lengths up to 2000 mm).
If an extension or inlet section is selected, the total height (H) increases by 60 mm.

Slope toward the outlet:

The product’s slope toward the outlet varies depending on length and chosen upper part depth. For the standard design with a centrally placed outlet, the following applies:

For lengths up to 2000 mm with the recommended depth of 56/36 mm, the slope toward the outlet is at least 1%.
For lengths between 2000–3000 mm and a recommended depth of 100/80 mm, the slope towards the outlet is at least 1.7%.
For a length of 3000 mm and a depth of 56/36 mm, a slope of 0.7% towards the outlet is achieved with a centrally positioned outlet.

If other requirements than the above recommendations are needed, the slope will be affected.
