Floor drain FURO 105

Floor drain FURO 105

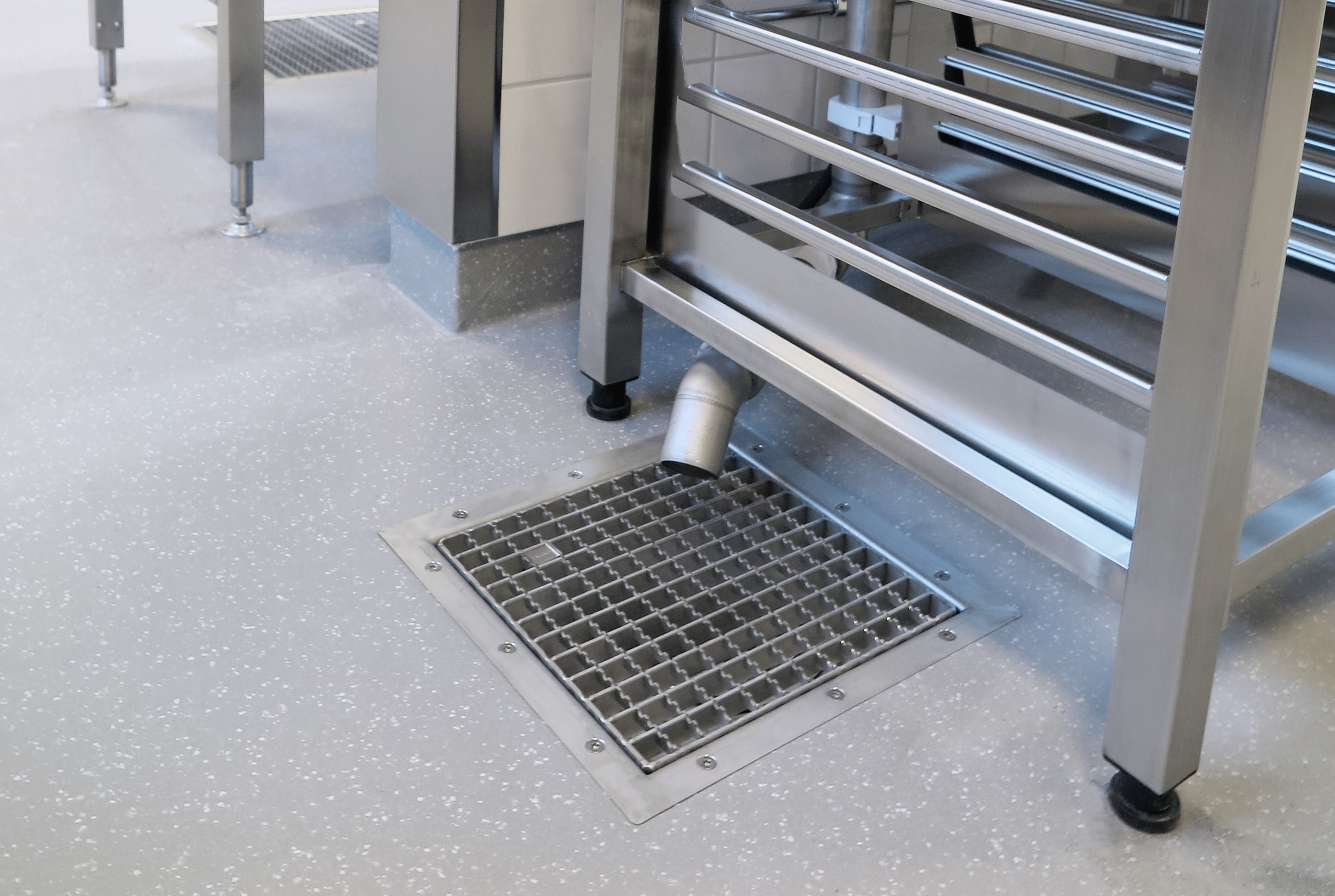

Flexible Floor Drain With many applications. Ideal for kitchens, restaurant environments, and industries with lighter loads. Available in stock for quick delivery.
  • Stainless Steel Floor Drain ideal for kitchens, restaurant environments, and industries with lighter loads.

  • Dimensions: 273 x 273 mm.

  • Manufactured from acid-resistant stainless steel, EN 1.4404 (SS 2348), for maximum durability and corrosion resistance regardless of the installation environment.

  • Designed for embedding in concrete floors.

  • Adapted for multiple common floor types and features 360° rotatable and angle-adjustable outlets. The upper parts are rotatable 360°, angle-adjustable, and telescopic for easy installation.

  • Removable trap with handle for easy cleaning and maintenance.

  • Equipped with EPDM rubber seals according to EN 681-1 type Wc for safe and reliable sealing.

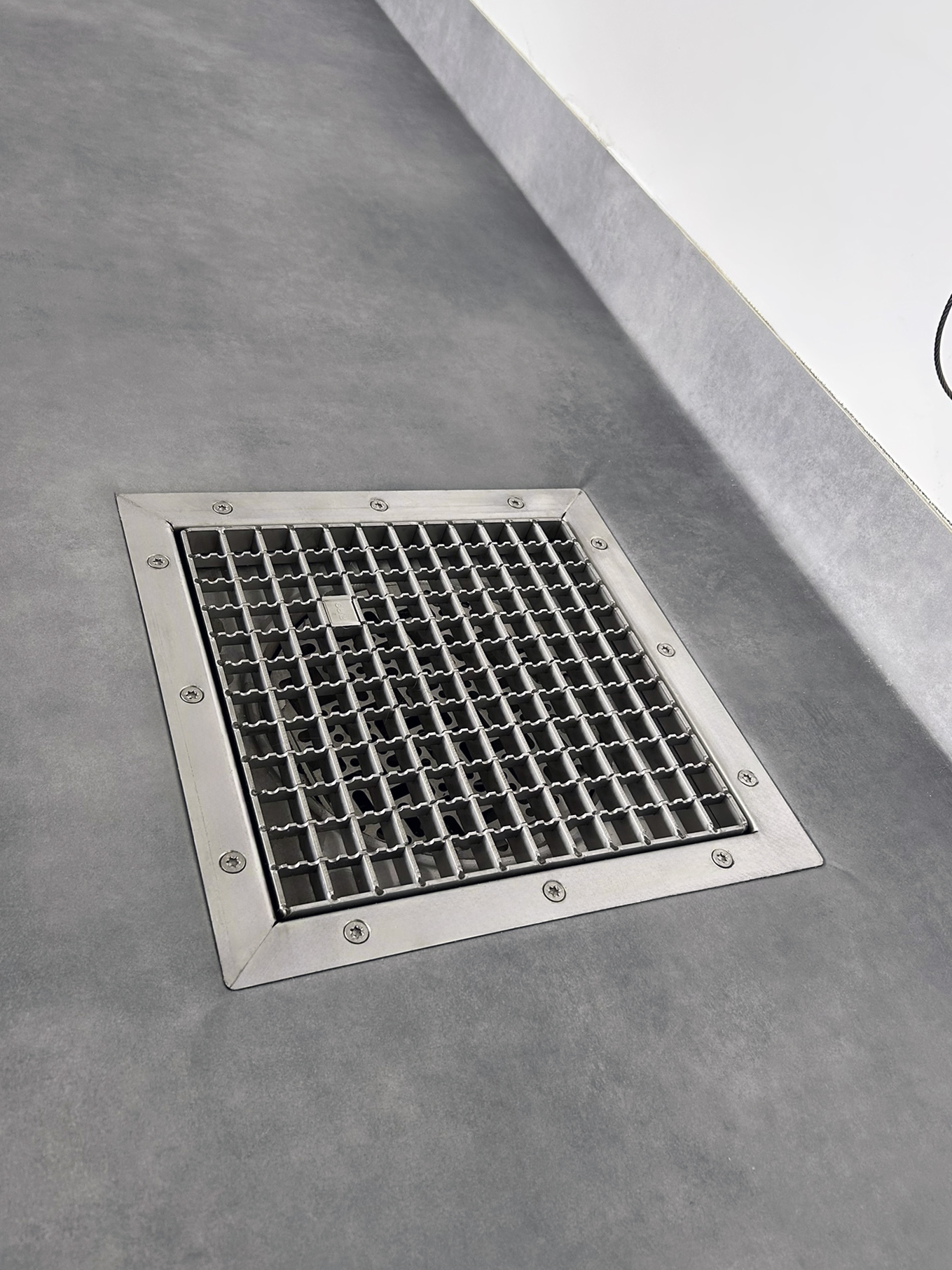

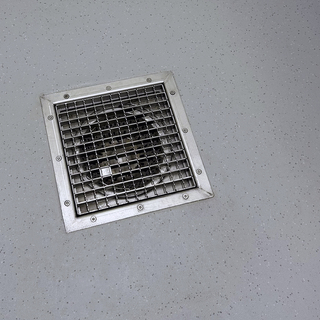

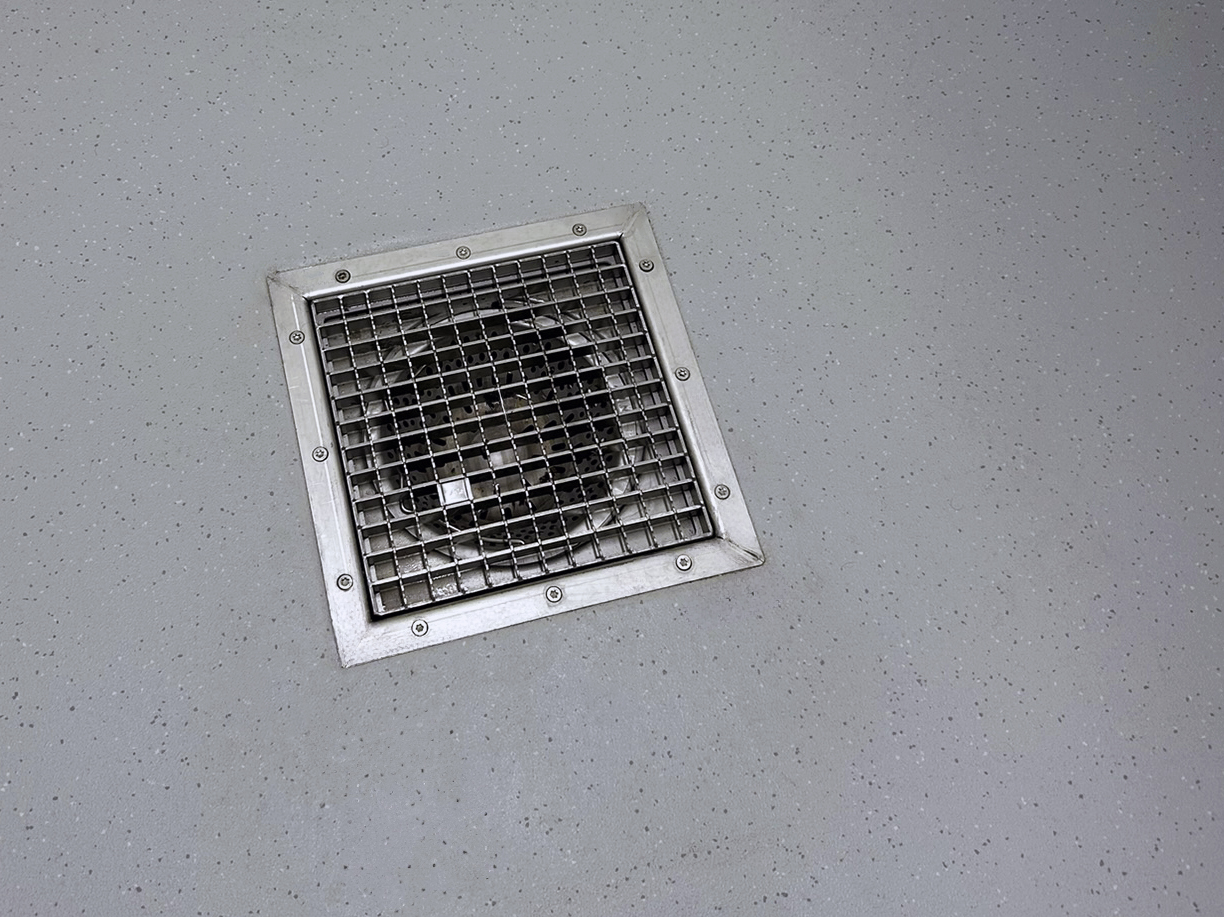

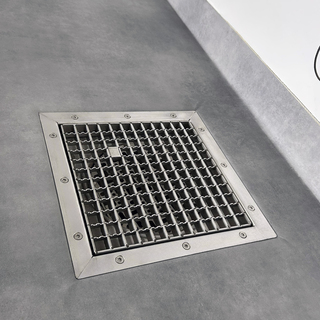

  • Fitted with a stainless steel, anti-slip grating for safe use.

  • Available in stock for immediate delivery.


Installation:

  • Delivered with a cover to prevent concrete from running down during pouring.
  • Robust anchor ears for easy anchoring and height adjustment from above.
  • For installation in mass floors, recess lists for attachment flanges are included.
  • L15 For areas with light weight traffic. Tested acc. to EN 1253-1 with 10 kN load.

Immediate delivery

Variants

Clinker floor K1

Clinker floor K1

Floor material: Clinker in adhesives
Water proofing: Waterproofing layer that can be rolled/spread and connected to a smooth stainless steel flange
Water proofing drain flange: 50 mm wide stainless adhesive flange
Clinker floor K3

Clinker floor K3

Floor material: Clinker in adhesives
Water proofing: Floor without waterproofing
Water proofing drain flange: None
Clinker floor K4

Clinker floor K4

Floor material: Clinker directly on waterproofing layer
Water proofing: Waterproofing layer that can be rolled/spread and connected to a smooth stainless steel flange
Water proofing drain flange: 50 mm wide stainless adhesive flange
Clinker floor K5

Clinker floor K5

Floor material: Clinker directly on waterproofing layer
Water proofing: Clinkers on sandwiched waterproofing membrane
Water proofing drain flange: Clamping flange
Resin flooring

Resin flooring

Floor material: Resin flooring
Water proofing: Compound floor
Water proofing drain flange: Recess for resin floor
Vinyl flooring

Vinyl flooring

Floor material: Vinyl flooring 1,5-4 mm
Water proofing: Vinyl flooring
Water proofing drain flange: FURO clamping flange
Vinyl flooring on wooden beams

Vinyl flooring on wooden beams

Floor material: Vinyl flooring 1,5-4 mm
Water proofing: Vinyl flooring
Water proofing drain flange: FURO clamping flange
Concrete floor

Concrete floor

Floor material: Concrete floor
Water proofing: Floor without waterproofing
Water proofing drain flange: None

Dimensions for FURO 105 floor drain


For more information, see the section:

"Water flow, total height, upper part depth, and slope towards outlet".


Construction dimensions for FURO 105 floor drain:

S1 = 420 mm

F1 = 340 mm

Drains and channels always have a connection pipe and a flow path to consider. The flow path is always measured at the so-called bottom line of the pipe.

To simplify product selection, we specify the total height (H) of our drains and channels. The total height is the distance from the finished floor surface down to where the water exits the product. For bottom outlets, the measurement point is where the socket begins.

The total height (H) always consists of the depth of the upper part (D) plus the outlet part of the product. If the depth of the upper part is increased, the total height also increases, affecting the product’s flow path.

Dimensions for FURO 105:
Upper part depth (D) for different floor types:

  • Resin flooring: 41 mm
  • Vinyl flooring: 31 mm
  • Tiles K3: 41 mm
  • Concrete floor: 41 mm
  • Tiles K4, K5: 22 mm


The total height (H) is then as follows:

  • Solid floor: 173 mm
  • Vinyl flooring: 163 mm
  • Tiles K3: 173 mm
  • Steel-smoothed concrete floor: 173 mm
  • Tiles K4, K5: 161 mm
  • Vinyl flooring on wooden joists: 163 mm


If an extension part or inlet part is selected, the total height (H) increases by 82 mm.


Slope toward outlet:
The slope is adjusted according to the product and floor type.

S 75

Side outlet Ø75 mm

Capacity 4,3  l/s

S 110

Side outlet Ø110 mm

Capacity 5,1 l/s

B 75

Bottom outlet Ø75 mm

Capacity 4,4  l/s


B 110

Bottom outlet Ø110 mm

Capacity 4,7  l/s

Trap

Trap

Part no. 220VH12

Trap with mechanical odor stop

Trap with mechanical odor stop

Part no. 220VL12

Water trap, odor and backflow stop

Water trap, odor and backflow stop

Water trap with mechanical odor and backflow stop.

Part no. 220VLB12

Trap with shut-off function

Trap with shut-off function

Part no. 220VA2

Anti-slip grid, L15

Anti-slip grid, L15

Anti-slip stainless steel grid with load class L15.
Included as standard.

Part no. Z-1GFL2727

Grating plate, L15

Grating plate, L15

Robust and easy-to-clean perforated plate.

  • Load class: L15.

Part no. Z-1SILR27271

Strainer basket, 1,2 liters

Strainer basket, 1,2 liters

  • Volume: 1.2 l
  • Capacity: 4.0 l/s

Part no. 220SK32

Strainer basket, 2.7 liters

Strainer basket, 2.7 liters

The strainer basket is suitable for drains without a trap and drains with an extension part.

  • Volume: 2.7 l
  • Capacity: 4.0 l/s

Part no. 220SK41

Sand trap, 0.9 liters

Sand trap, 0.9 liters

  • Volume: 0.9 l
  • Capacity: 1.5 l/s

Part no. 220SF61

Sand trap, 1.5 liters

Sand trap, 1.5 liters

The sand trap fits in drains with an extension part or without trap.

  • Volume: 1.5 l
  • Capacity: 1.5 l/s

Part no. 220SF41

Lifting tool

Lifting tool

Lifting tool for grating and perforated plates.

Part no. 1LK1

Key for water trap

Key for water trap

Key for locking Water trap 220VA2.

Part no. 1NV1

Raising ring

Raising ring

Raising ring for tile floor type K1 with a height of 25 mm

Part no. 220FR12

Extension part

Extension part

Extension part, provides space for extra large accessories. Increases total height by 82 mm.

Part no. 1VPA220

Inlet part

Inlet part

Inlet part with Ø 50 mm connection. Increases total height by 82 mm.

Part no. 1VIN220

Radon sealing

Radon sealing

Factory-installed radon and waterproofing.

Part no. 1VRT

Grounding braid

Grounding braid

Grounding braid for equipotential bonding.

Part no. 1VJF

Fixed Drain Grate

Fixed Drain Grate

Grate secured with screws for enhanced safety.

Part no. 1VFG-GL

Drain without trap

Drain without trap

Floor drain without built-in trap. A trap can be easily retrofitted if needed.

  • Capacity: 6 liters per second

Part no. 1VSU220

Mounting, threaded rod

Mounting, threaded rod

Easy adjustment from above.

  • Height 300 mm.
  • Foot diameter = 100 mm.

Part no. 1SB30

Sealant Aqua Tät

Sealant Aqua Tät

Sealant Aqua Tät for plastic flooring. Used under the flooring when installing the clamping frame.

Part no. 1AQUAT40
