Low-profile floor drain FURO 125

Vid ombyggnad och renovering som kräver hög vattengång.

The low-profile design of the channel makes it optimal for renovation and conversion projects (ROT) that require high water flow and have tight installation spaces.
It is made of stainless steel EN 1.4301 (SS 2333) or acid-resistant stainless steel EN 1.4404 (SS 2348) for high corrosion resistance and long durability.

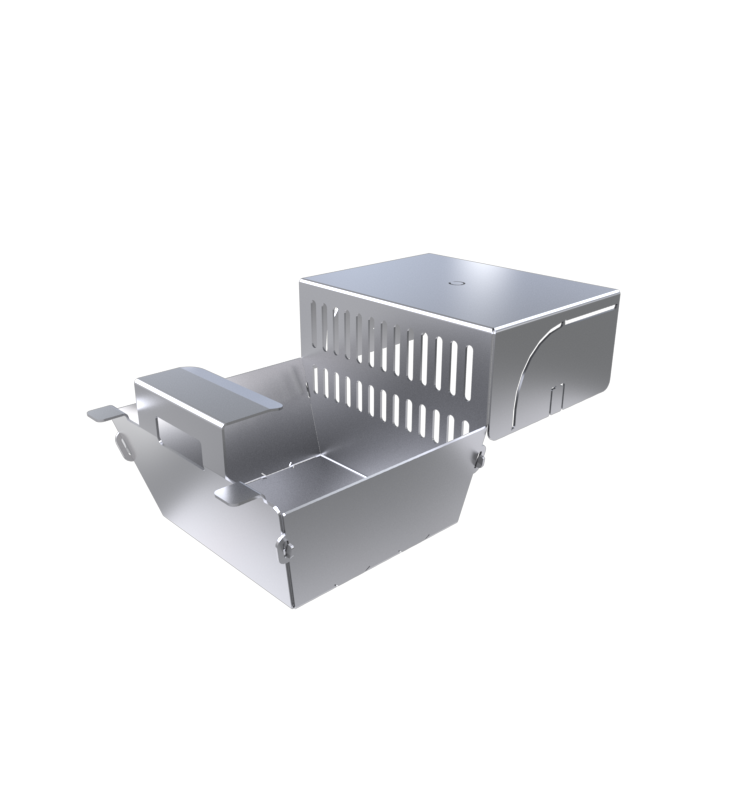

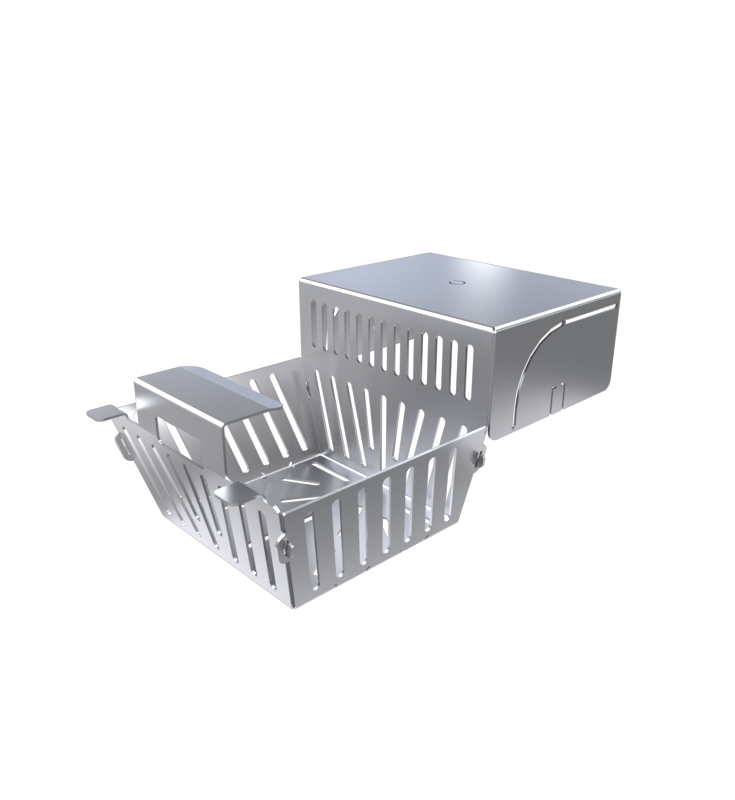

Equipped with a removable water trap that provides easy access for maintenance and cleaning.

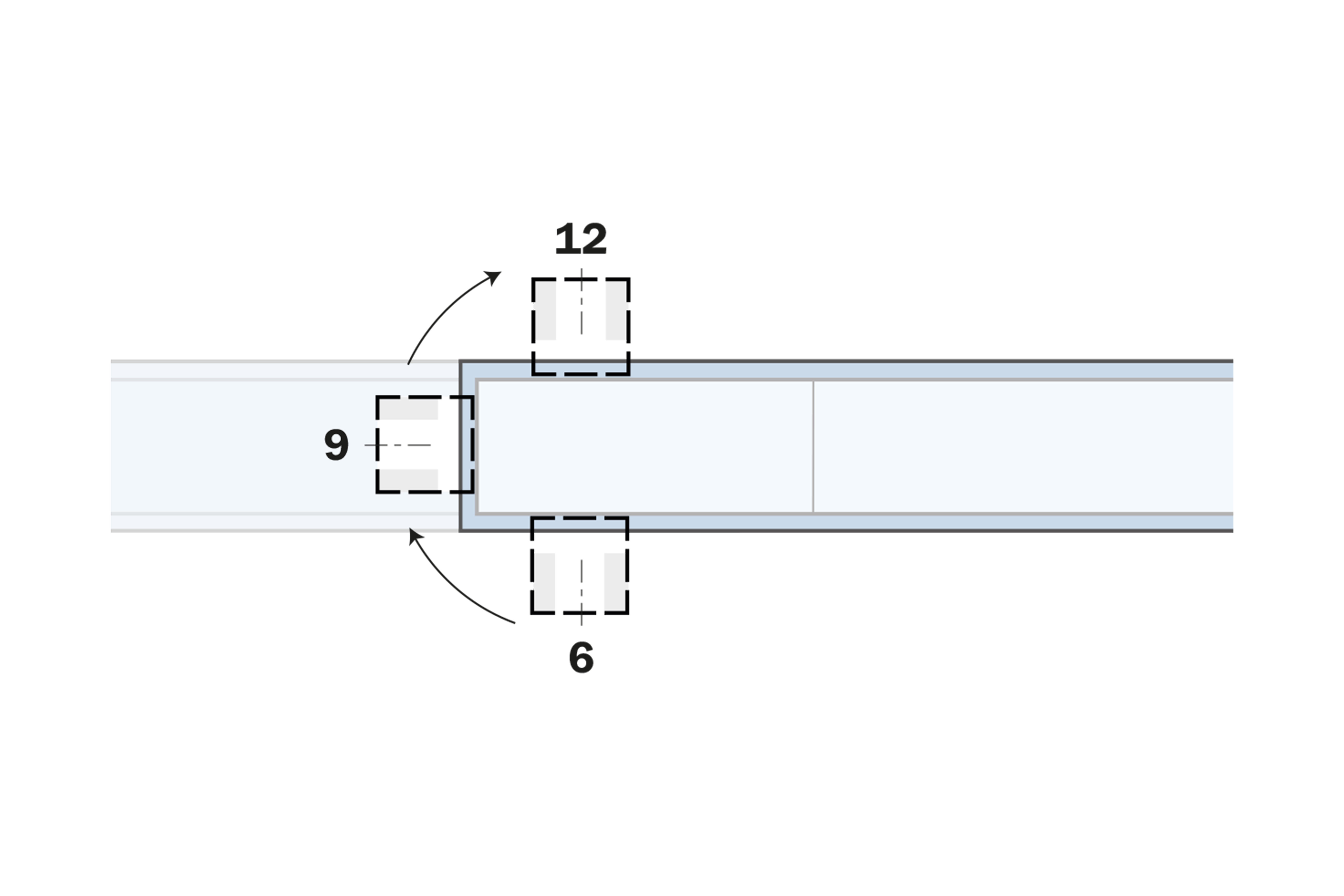

Fixed outlet part located on the left end up to a length of 1500 mm (see product image). For side outlets, this is directed, as shown in the image, toward the long side. Channels with lengths of 1600–3000 mm are equipped with a center-mounted outlet part.
Stainless steel slip-resistant grate manufactured in sections, where each section has a maximum weight of 6 kg for easy and ergonomic handling.
There is an option to equip the channel with functional accessories and additional details for further customization to specific needs.

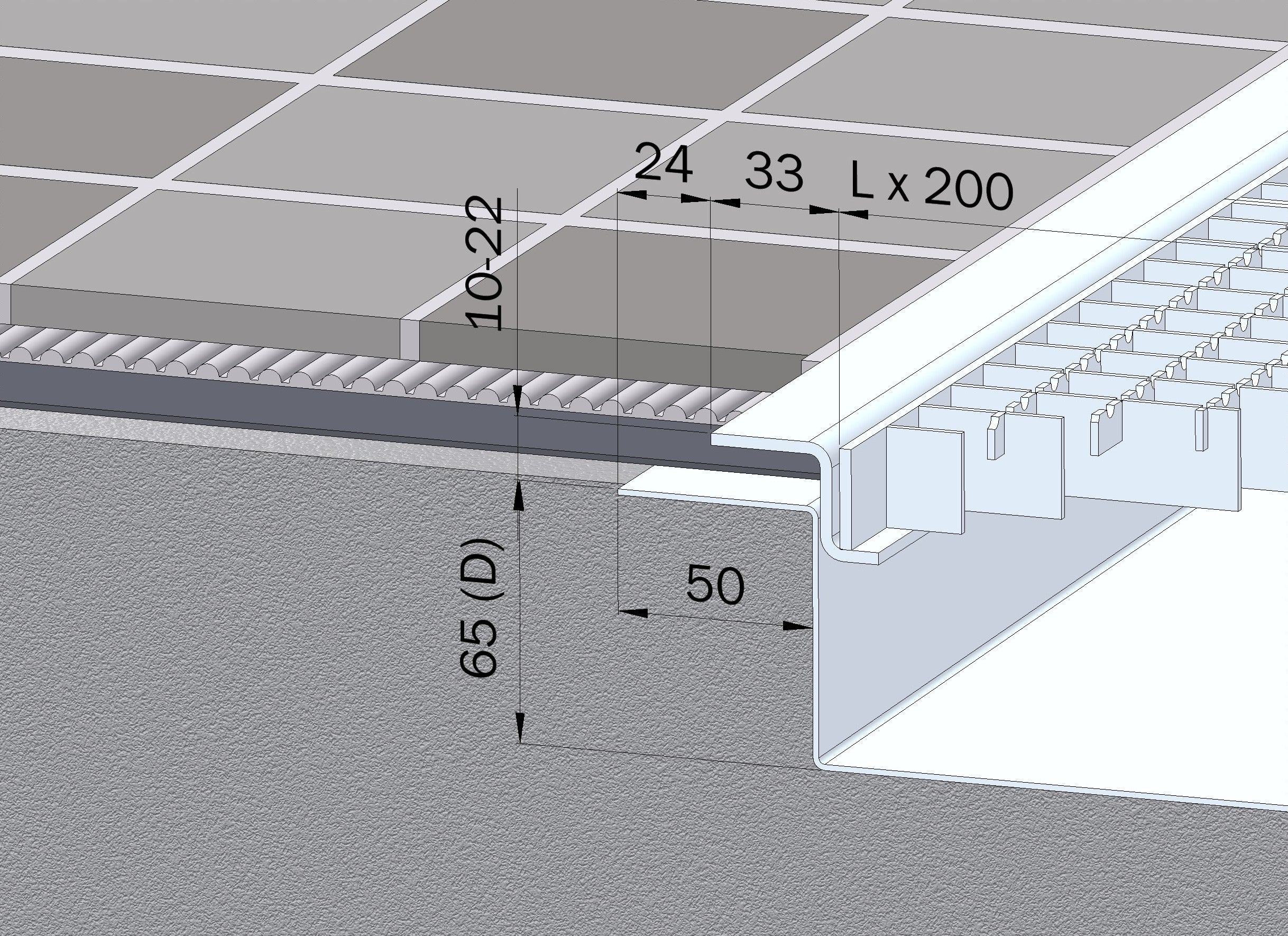

Designed for embedding in concrete decks with tops for floor types such as tiled floors, massage floors, plastic mats, and steel-polished concrete floors.

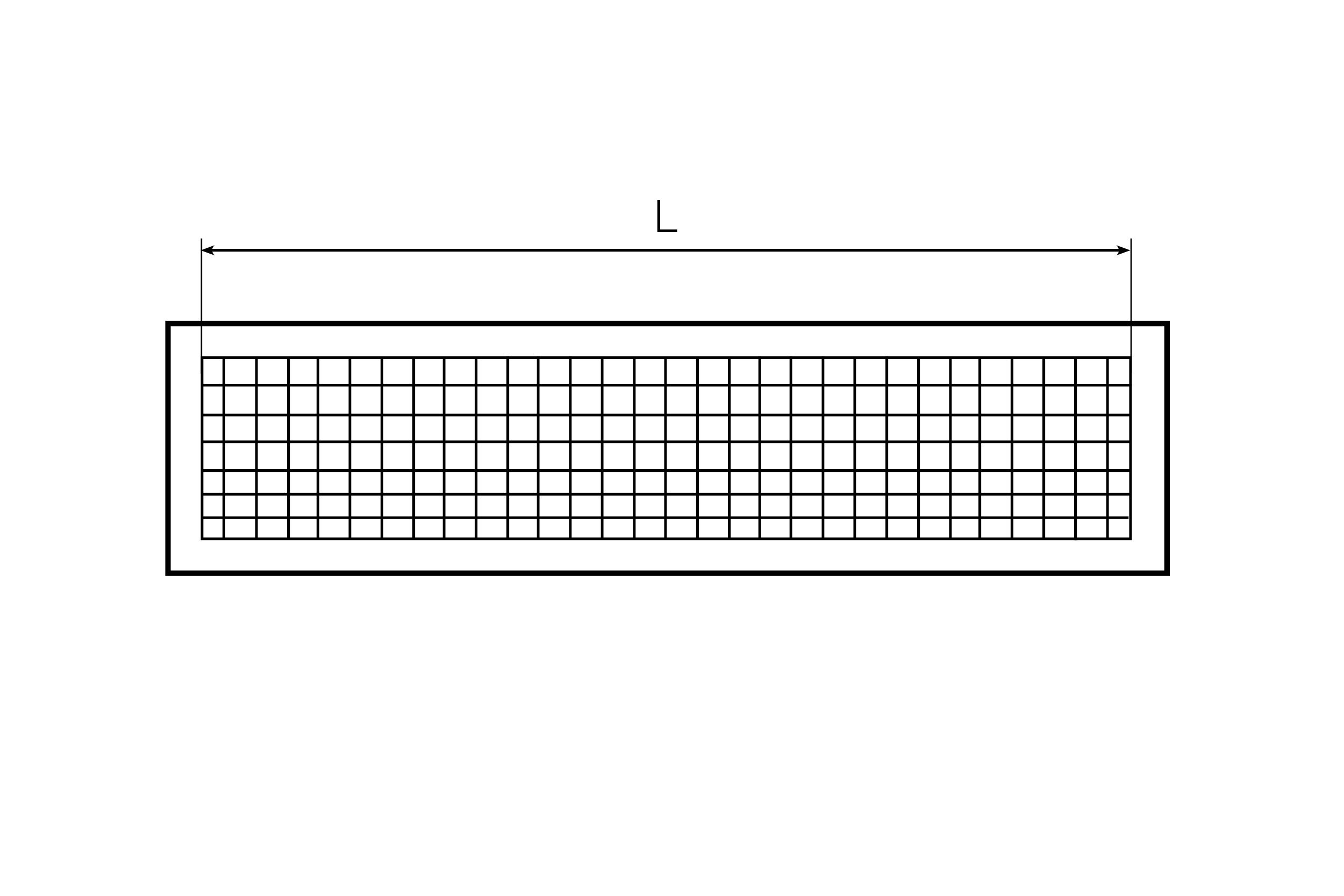

Variable length: 400-3000 mm, in 100 mm intervals.

Installation:

Delivered pre-assembled and covered to prevent concrete from flowing into the channel during casting (up to a width of 400 mm).

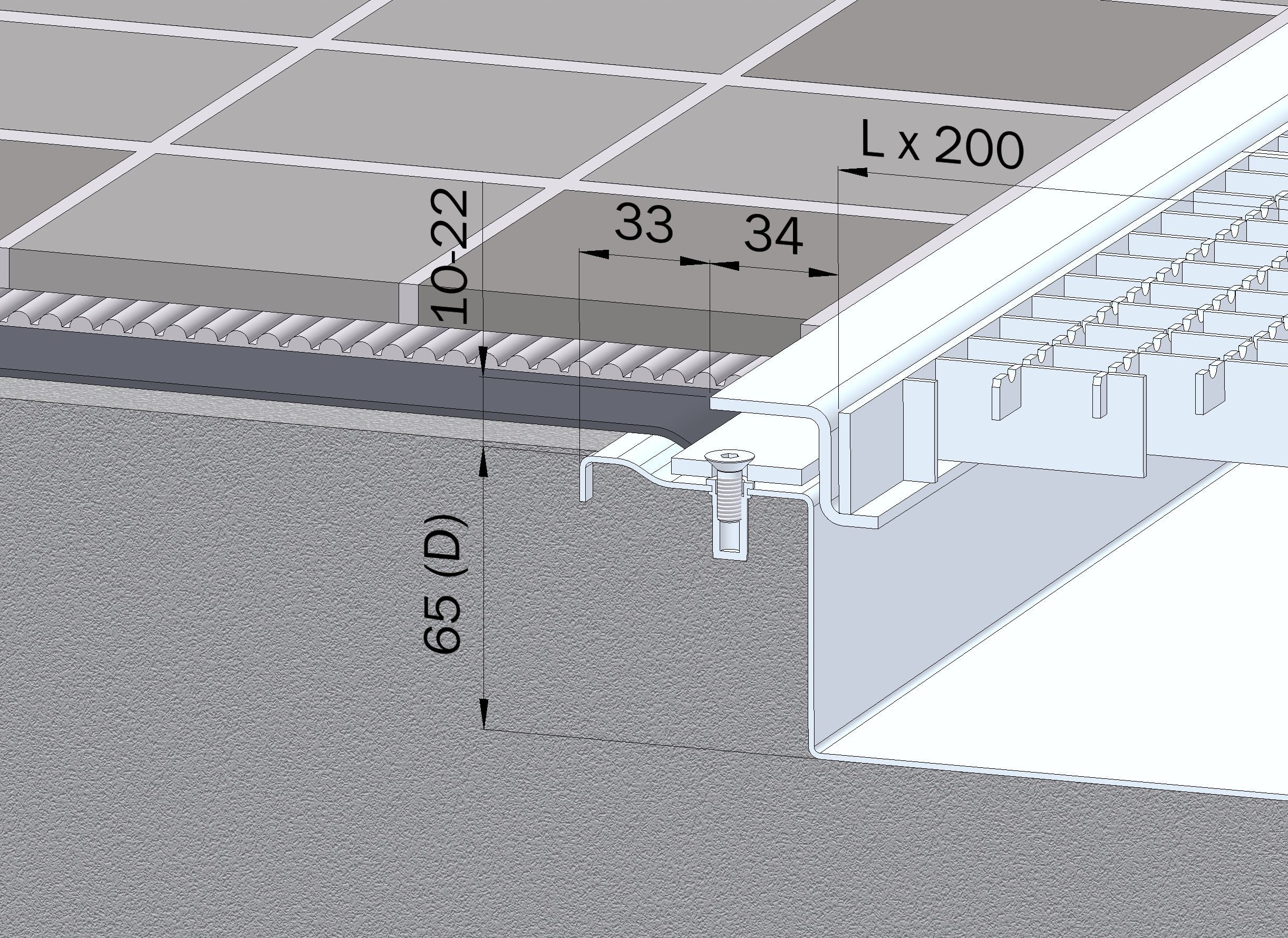

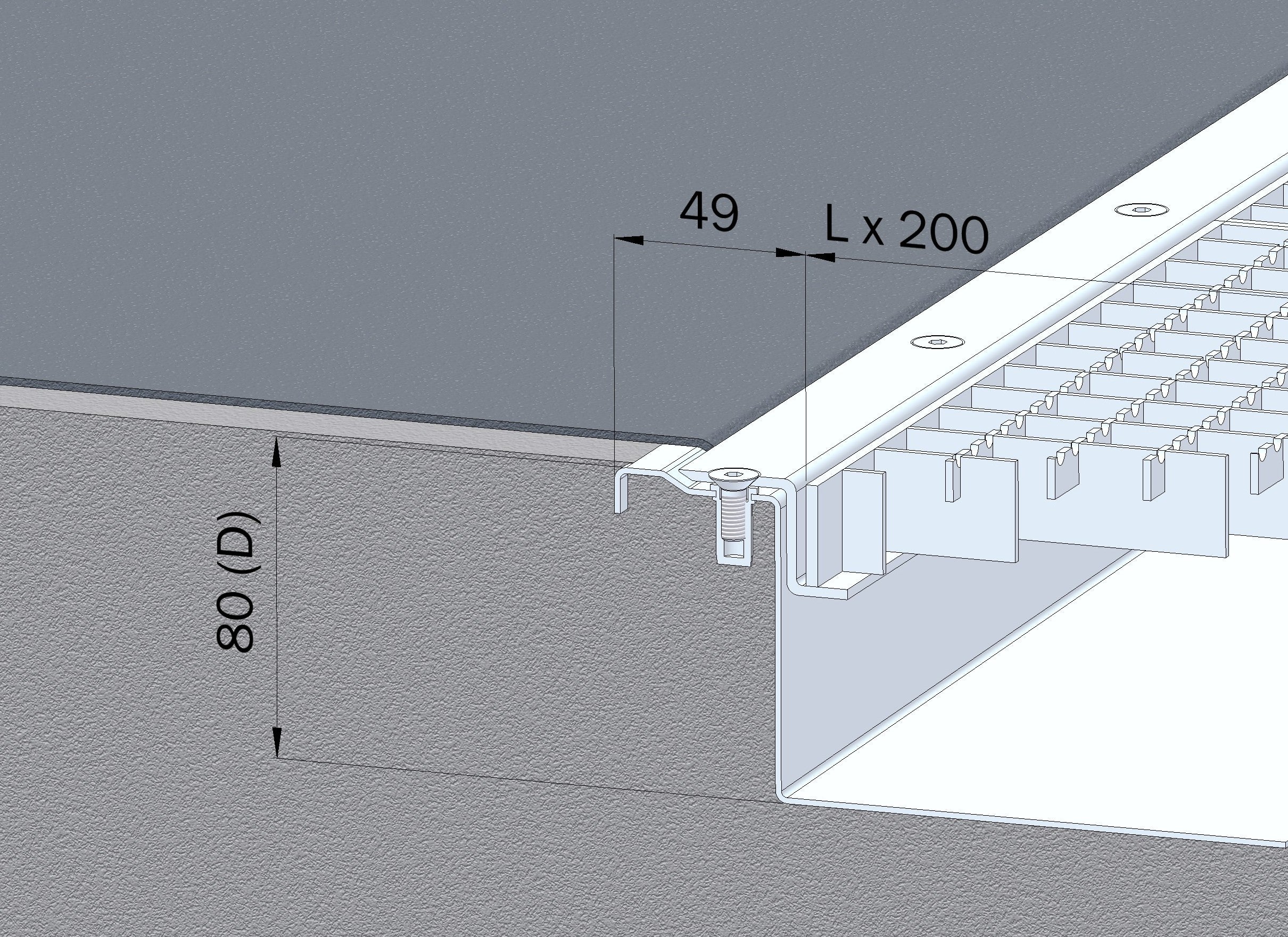

For Resin flooring, spacers are included on the bonding flanges.

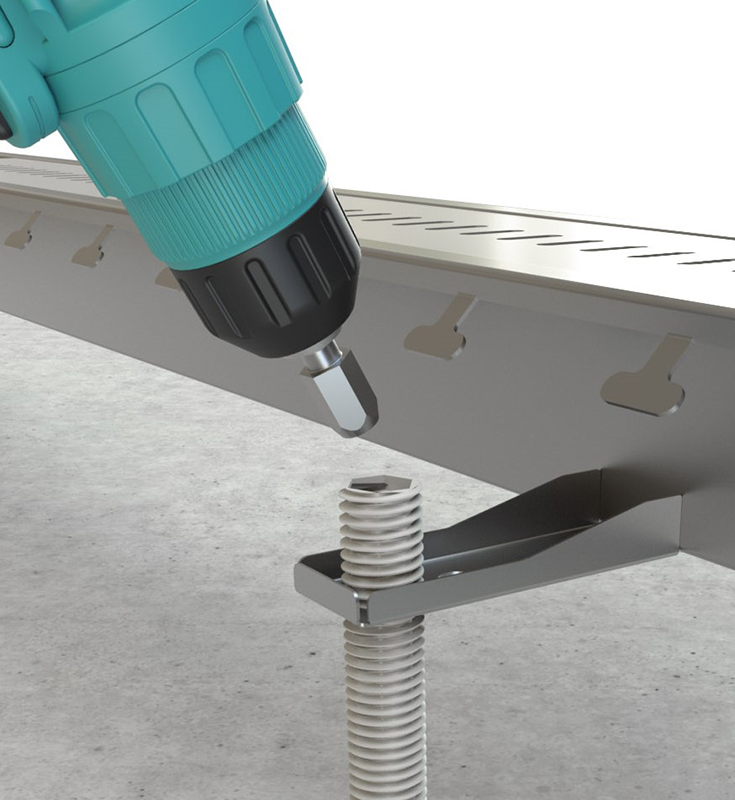

Robust anchoring brackets for various anchoring in the deck are included.

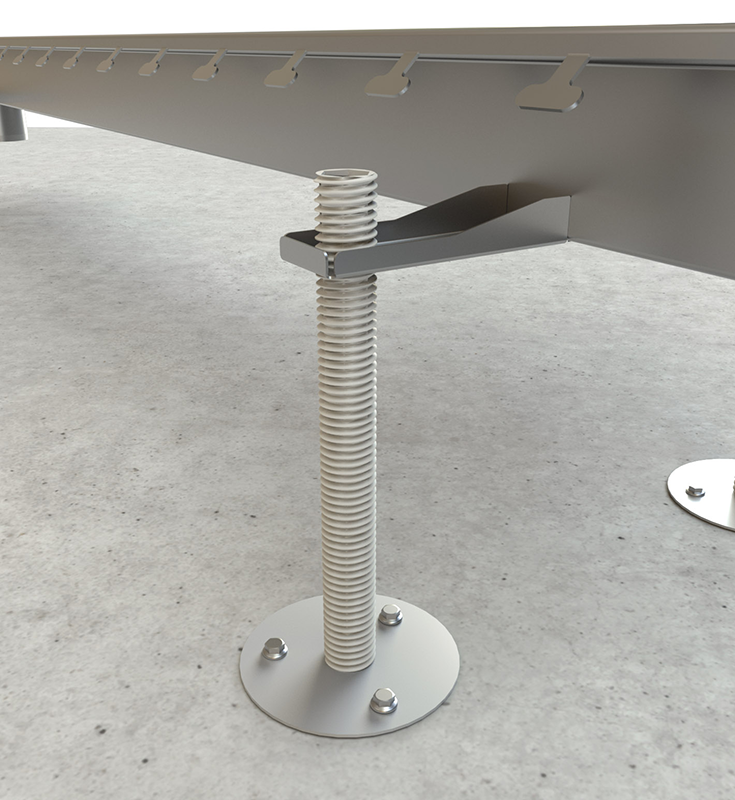

Adjustable feet for easy installation and height adjustment are offered. See the Installation Accessories section.

The low-profile design of FURO 125 means that flow capacity is limited. Where large flows are required, FURO 117 should be chosen as the first option.
If, due to limited space in the joist, FURO 125 is still selected, large inflows must be managed to avoid flooding. Note that the specified capacity values apply at a 20 mm overflow.

Variants

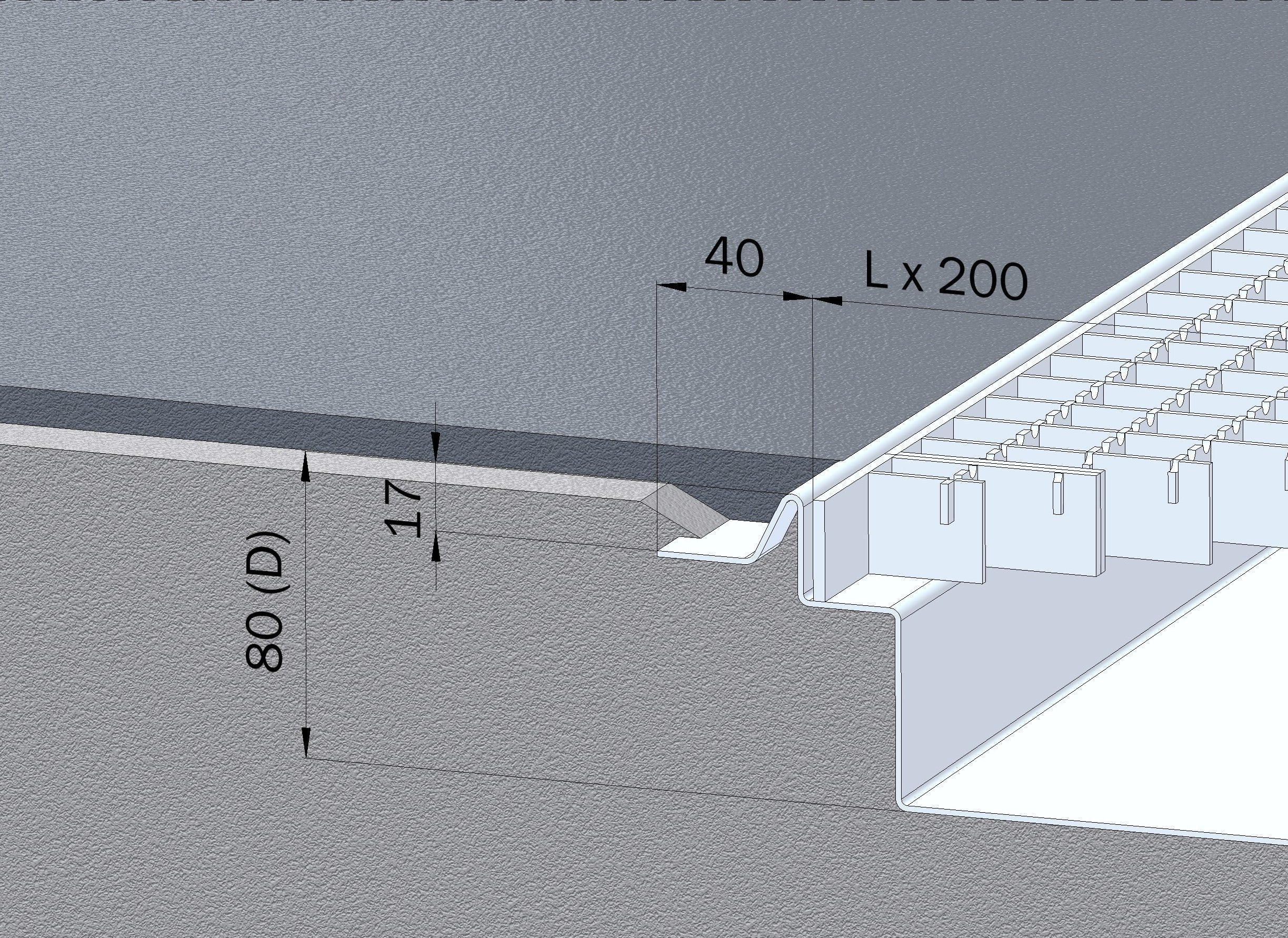

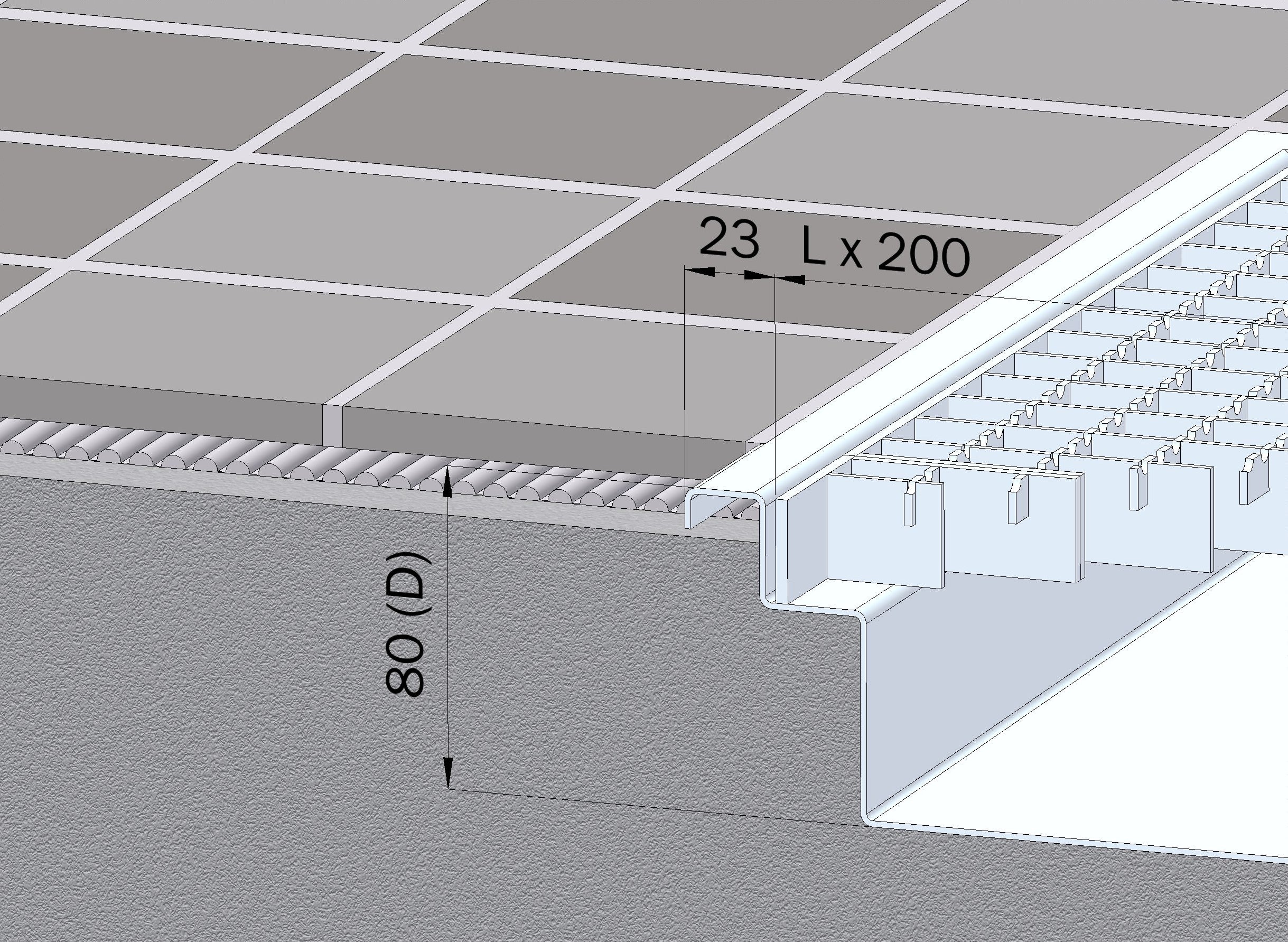

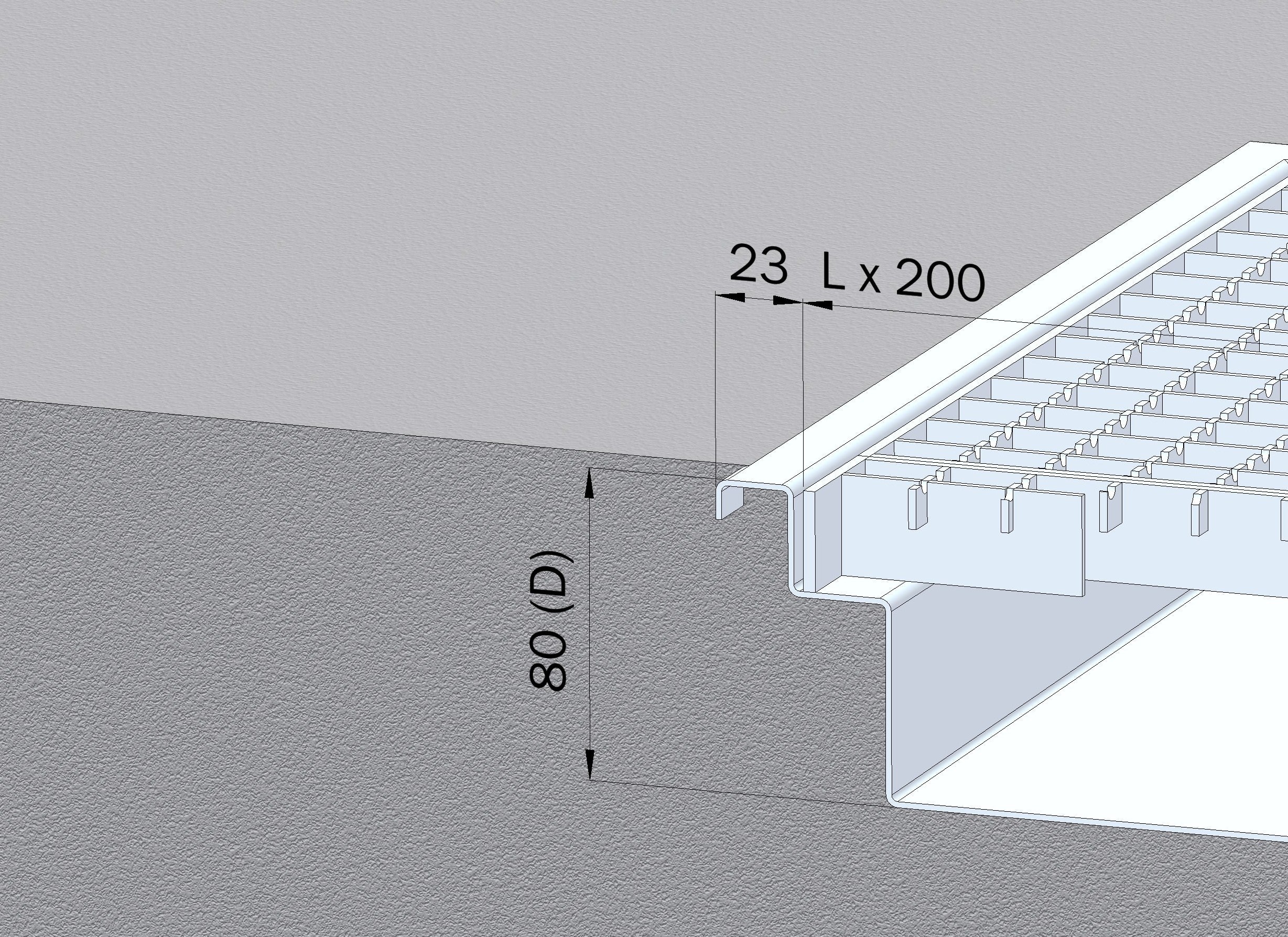

Dimensions for FURO 125 floor channel:

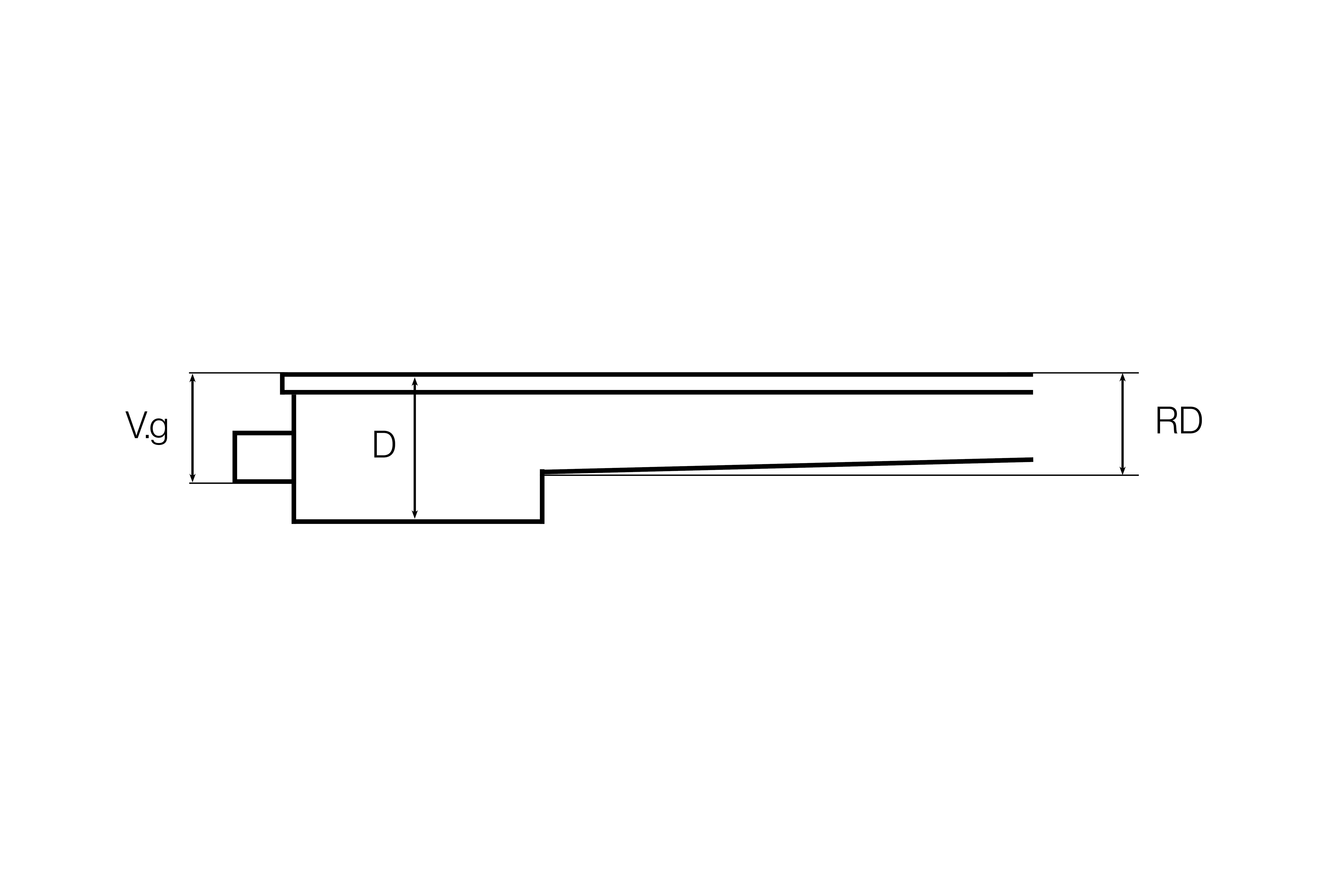

Depth: For lengths exceeding 3000 mm, the channel's depth increases.
Centrally positioned outlet: For lengths between 1600 and 3000 mm, the channel is equipped with a centrally positioned outlet section.
