Floor drain for shower and changing areas FURO 023

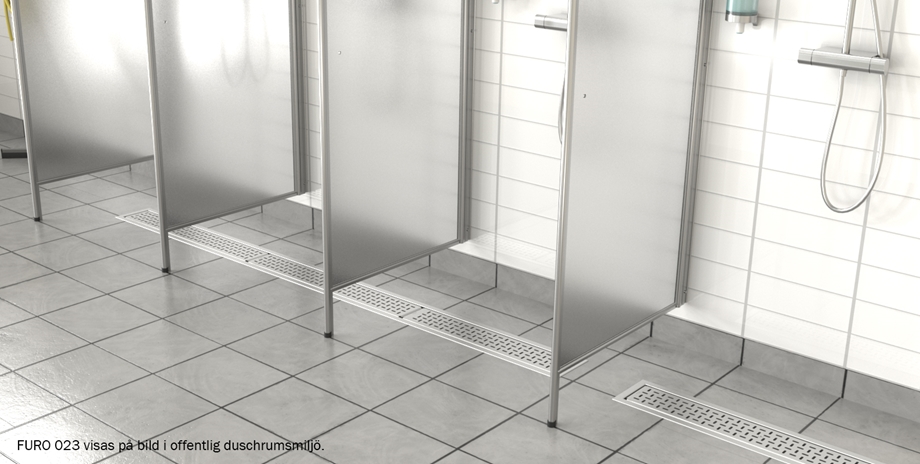

Functional and barefoot-friendly stainless steel floor drain for public environments. Ideal for pools, spas, gyms, and other public shower and changing rooms.

Functional and barefoot-friendly design that provides safe and comfortable use. The channel is aesthetically pleasing and designed for bathing and SPA facilities.
Durable and stable grate plates that are comfortable to walk on with bare feet. The grate plates can be offered with fixed locking (see section on additional details).
Manufactured from acid-resistant stainless steel, quality EN 1.4404, for high durability and resistance to corrosion in the salt- and chlorine-rich environments offered by swimming facilities.
Easy-to-maintain and accessible parts that simplify cleaning and upkeep.

Variable lengths:

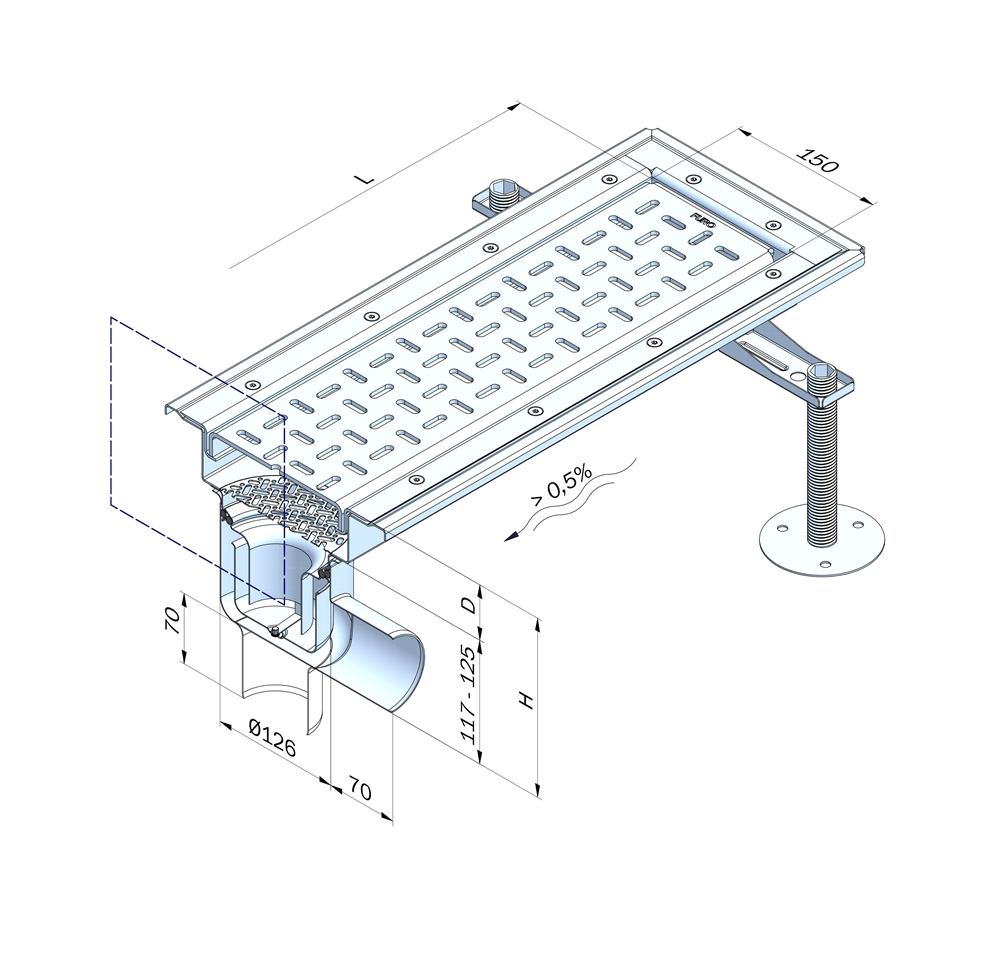

The channel's width is 150 mm, and the length can be customized from 400 to 3000 mm, in 100 mm intervals.

Installation:

Delivered with a cover to prevent concrete from penetrating during casting.
Robust mounting ears for secure anchoring in the ceiling structure.
When installed in a massage floor, spacer strips for bonding flanges are included.
Height-adjustable support legs 1SB40 allow for easy adjustment from above (see Installation Accessories).

L15 For areas with light weight traffic. Tested acc. to EN 1253-1 with 10 kN load.

FURO 023 är konstruerad för att uppfylla kraven i den gällande normen för golvbrunnar, SS-EN 1253-1.

För att bibehålla det rostfria ytskiktet i en salt- och klorrik miljö ska rännor och brunnar dagligen spolas av med färskvatten samt tömmas på föremål som kan orsaka rostsmitta (järnhaltiga föremål som ex.vis hårspännen och dylikt som rostar och ”smittar” den rostfria ytan). Rännan ska skrubbas överallt regelbundet minst en gång per månad med Scotch-Brite. Stålull och andra järnhaltiga material får ej användas.

Variants

Clinker floor K4

Floor material: Clinker directly on waterproofing layer

Water proofing: Waterproofing layer that can be rolled/spread and connected to a smooth stainless steel flange

Water proofing drain flange: 50 mm wide stainless adhesive flange

Clinker floor K5

Floor material: Clinker directly on waterproofing layer

Water proofing: Clinkers on sandwiched waterproofing membrane

Water proofing drain flange: Clamping flange

Resin flooring

Floor material: Resin flooring

Water proofing: Compound floor

Water proofing drain flange: Recess for resin floor

Vinyl flooring

Floor material: Vinyl flooring 1,5-4 mm

Water proofing: Vinyl flooring

Water proofing drain flange: FURO clamping flange

Vinyl flooring on wooden beams

Floor material: Vinyl flooring 1,5-4 mm

Water proofing: Vinyl flooring

Water proofing drain flange: FURO clamping flange

S 75

Side outlet Ø75 mm

Capacity 1,6 l/s

B 75

Bottom outlet Ø75 mm

Capacity 2,3 l/s

B 110

Bottom outlet Ø110 mm

Capacity 1,9 l/s

Trap

Trap included as standard.
Can be retrofitted.

Part no. 126VH2

Trap with odor seal

Trap with mechanical odor seal.

Part no. 126VL12

Strainer plate L15 Max. 1500 kg

Perforated plate with load class L15.

Maximum load: 1500 kg

Part no. Z-SILPLAT-L15

Lifting tool

Lifting tool for grating and perforated plates.

Part no. 1LK1

Strainer basket

Smaller filter basket.

Volume: 2.5 dl.
Capacity: 1.2 l/s.

Part no. 133SK12

Strainer basket, 5 dl

Filter bucket suitable for drain without a trap and in a drain with additional extension part.

Volume: 5 dl.
Capacity: 1.5 l/s

Part no. 133SK22

Key for water trap

Key for locking Vater trap 126VA2.

Part no. 1NV2

Inlet part

Inlet part with connection Ø 50 mm.
Increases the total height by 60 mm.

Part no. 1VIN126

Grounding braid

Grounding braid for equipotential bonding.

Part no. 1VJF

Radon sealing

Factory-installed radon and waterproofing.

Part no. 1VRT

Extension part

Provides space for extra-large accessories.
Increases the total height by 60 mm.

Part no. 1VPA126

Without trap

Floor drain without a trap. The trap can be retrofitted.

Capacity: 4 liters/second.

Part no. 1VSU126

Sealant Aqua Tät

Sealant Aqua Tät for plastic flooring. Used under the flooring when installing the clamping frame.

Part no. 1AQUAT40

Mounting, threaded rod

Easy adjustment from above.

Height 300 mm.
Foot diameter = 100 mm.

Part no. 1SB30

Bits for plastic mounting rod

For easy height adjustment of plastic mounting rod.

Part no. 1BITS16

Plastic mounting rod

Mounting rod that allows for easy adjustment from above.

Height: 300 mm
Foot diameter: 100 mm.

Use together with Installation accessories "Bits for plastic mounting rod".

Part no. 1SB40

Documents

Operation and maintenance

Technical overview

Monteringsanvisning FURO 023
