Narrow pool drain FURO 021

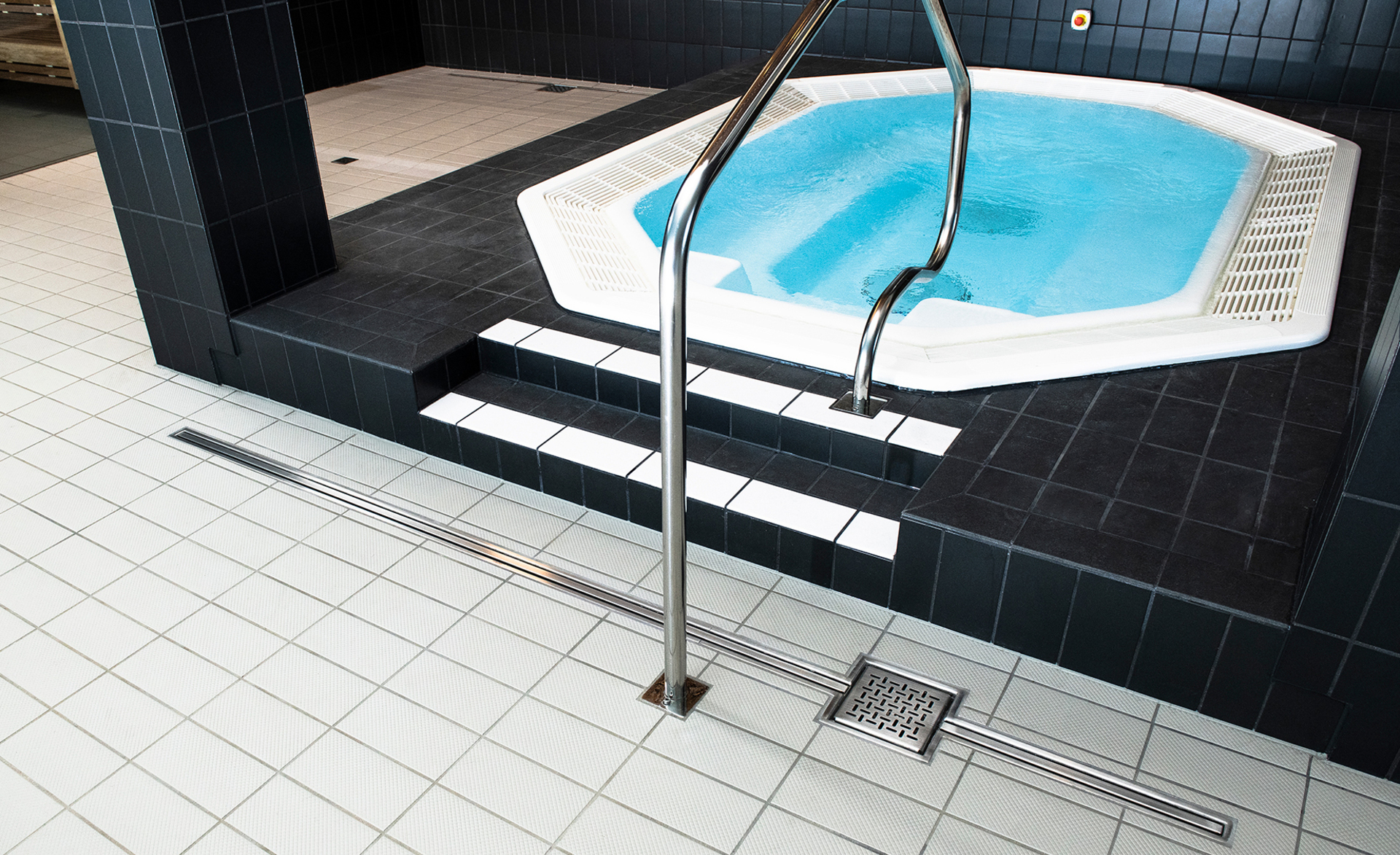

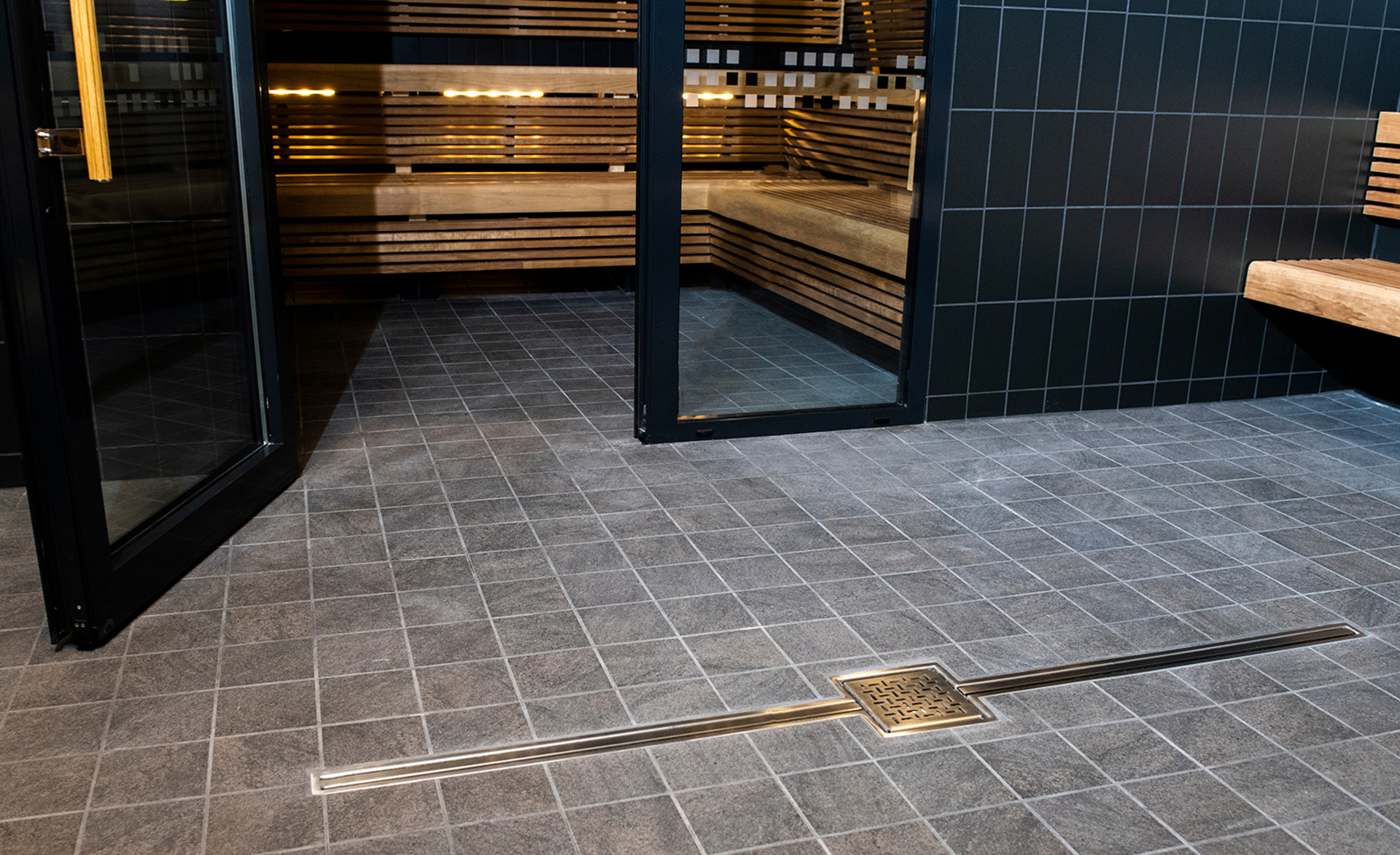

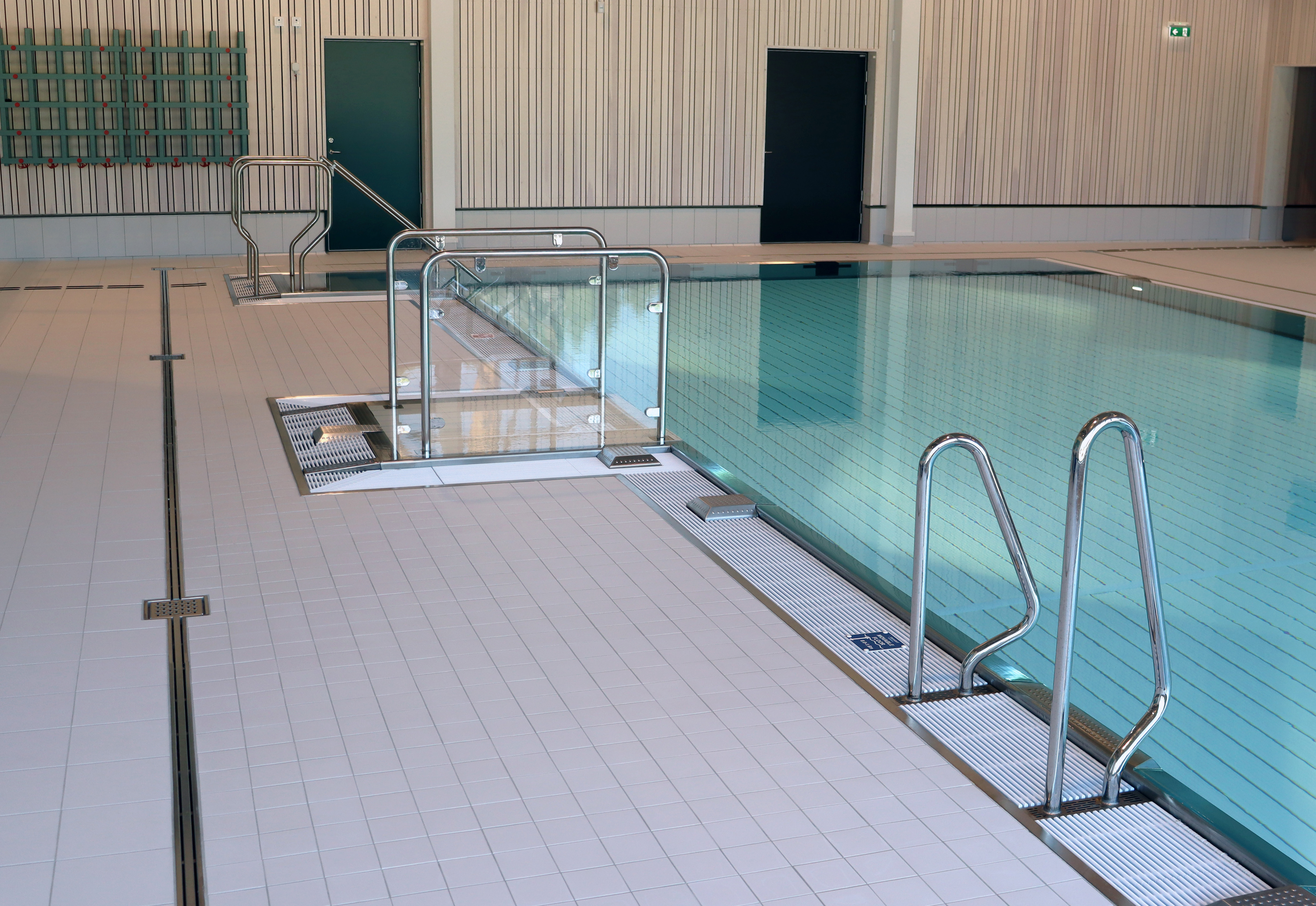

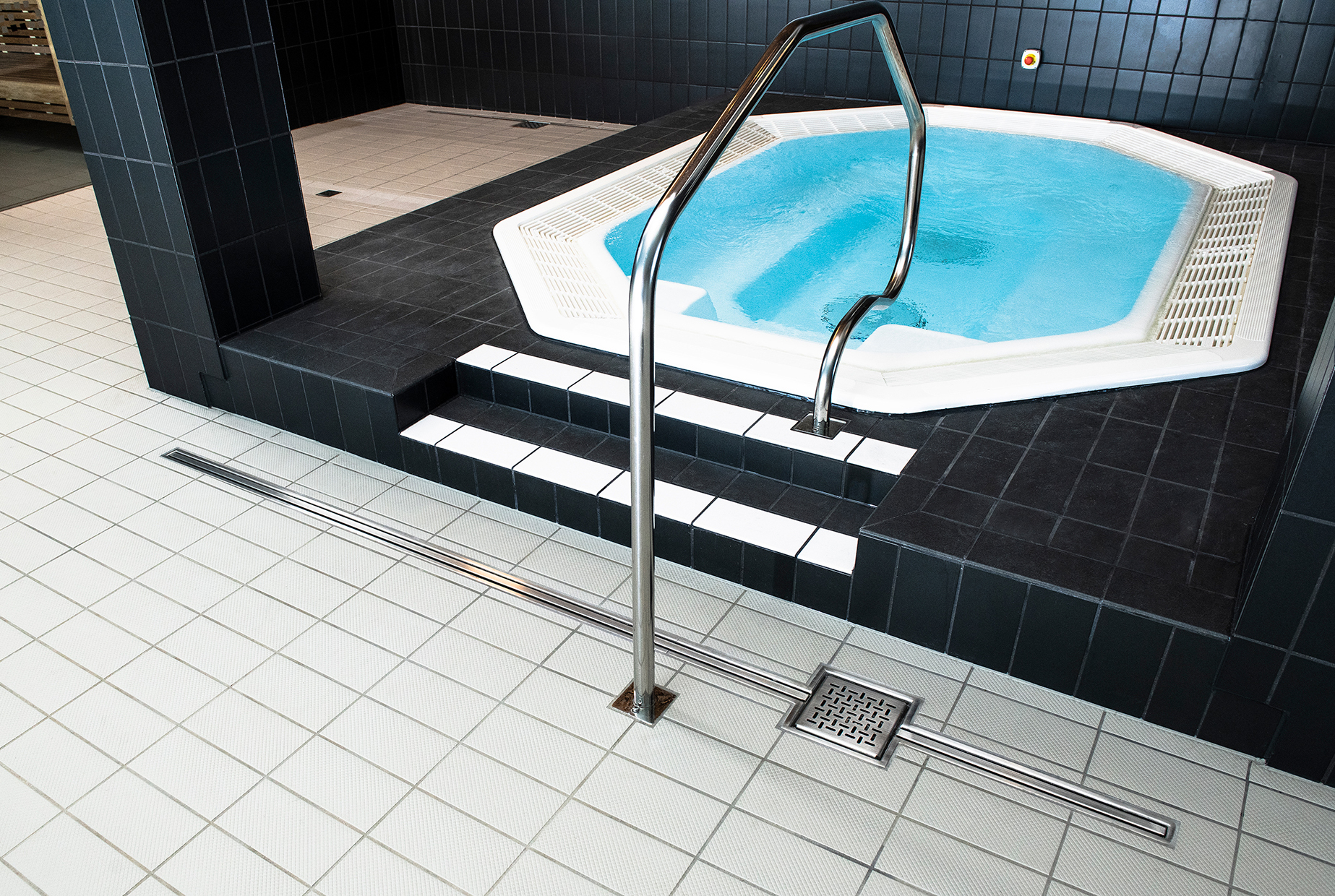

Narrow floor drain made of stainless steel, ideal for swimming pools, showers, changing rooms, and around pools. Available modular system for flexibility and customization according to specific needs.

The floor drain is ideal for swimming pools, showers, changing rooms, and around pools.

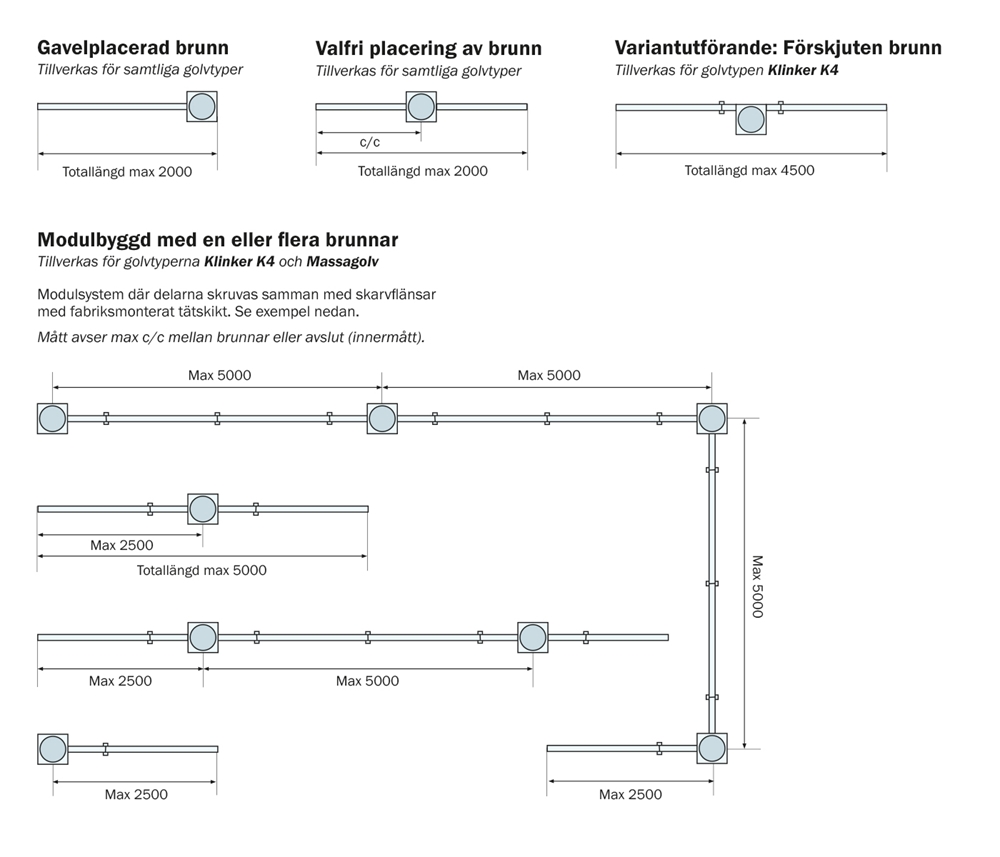

FURO 021 features a modular system for flexibility and adaptation to the specific needs of the operation.

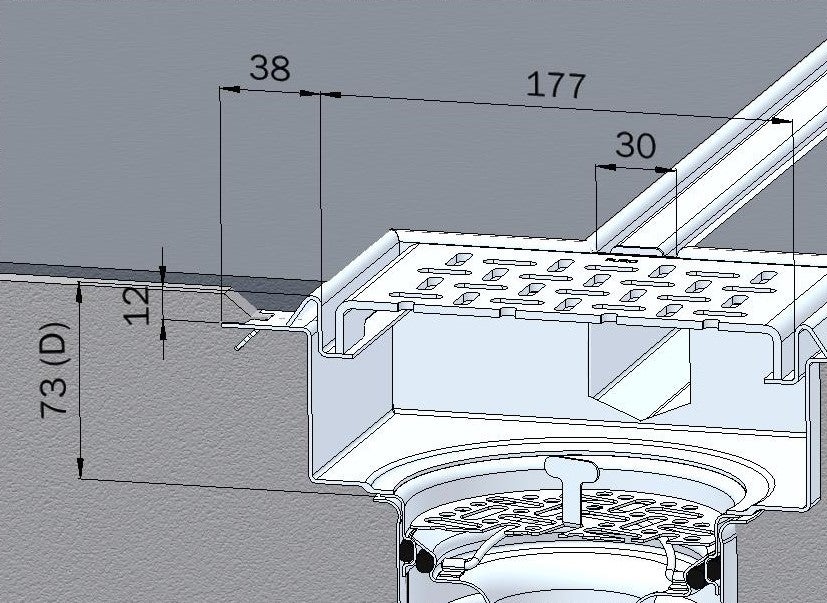

The drain is designed with a tight, liftable square profile that creates two slots for effective water drainage.
The slot openings of the floor drain do not exceed 8 mm, making it safe and comfortable to walk over with bare feet. The drain includes a slot cover with a hole pattern.
Made of acid-resistant stainless steel, quality EN 1.4404, ensuring long durability and high resistance to corrosion in the salt and chlorine-rich environments of swimming facilities.

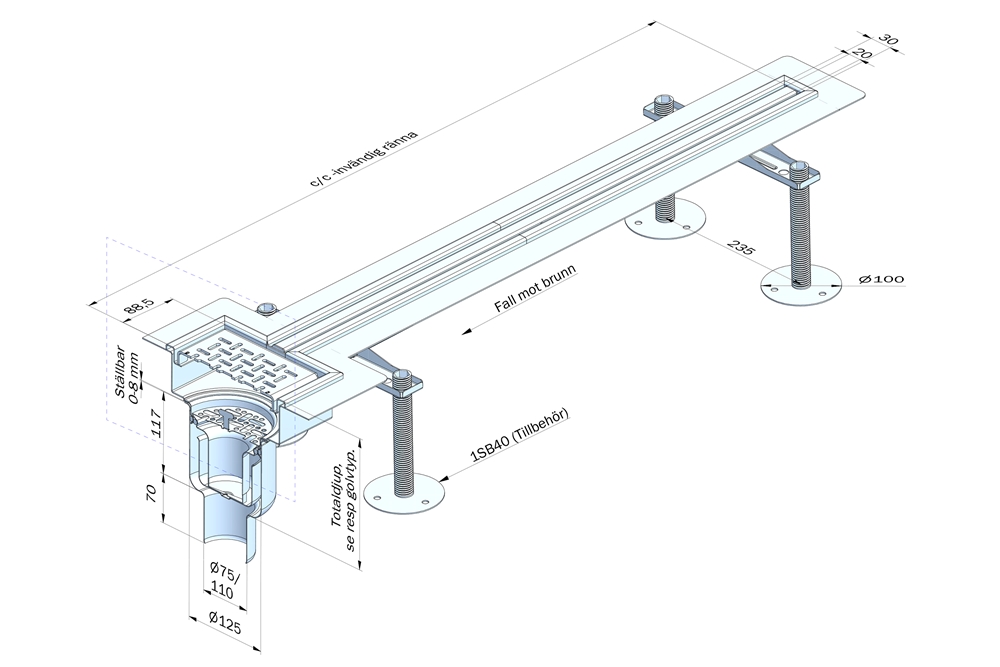

Intended for embedding in concrete floors with upper parts that are 360° rotatable, angle adjustable, and telescopic.
Removable water trap and inner strainer with a handle for easy cleaning.

Installation:

The lower part is delivered with a cover to prevent concrete from flowing into the drain during casting.
Equipped with sturdy fastening ears for secure anchoring in the joist.
For massage floors, spacers are included on the bonding flanges.
Adjustable feet allow for easy height adjustment from above (see installation accessories).

9 KN Tested and validated in a swimming pool environment. (Tested for an equivalent 9 kN "Test Load" according to SS-EN 1253-1).

To maintain the stainless steel surface in a salt and chlorine-rich environment, drains and grates should be rinsed daily with fresh water and emptied of items that can cause rust contamination (iron-containing items such as hairpins and similar that rust and "contaminate" the stainless surface).
The drain should be scrubbed thoroughly at least once a month with Scotch-Brite. Steel wool and other iron-containing materials must not be used.

Variants

Clinker floor K4

Floor material: Clinker directly on waterproofing layer

Water proofing: Waterproofing layer that can be rolled/spread and connected to a smooth stainless steel flange

Water proofing drain flange: 50 mm wide stainless adhesive flange

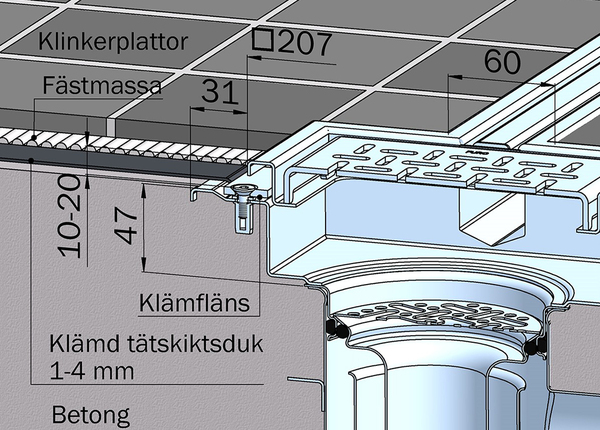

Clinker floor K5

Floor material: Clinker directly on waterproofing layer

Water proofing: Clinkers on sandwiched waterproofing membrane

Water proofing drain flange: Clamping flange

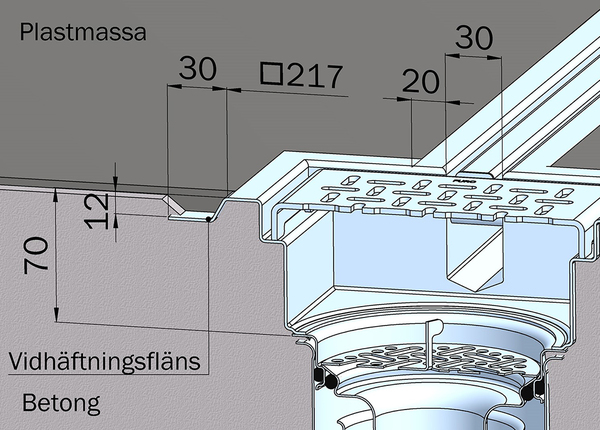

Resin flooring

Floor material: Resin flooring

Water proofing: Compound floor

Water proofing drain flange: Recess for resin floor

Vinyl flooring

Floor material: Vinyl flooring 1,5-4 mm

Water proofing: Vinyl flooring

Water proofing drain flange: FURO clamping flange

S 75

Side outlet Ø75 mm

Capacity 1,6 l/s

B 75

Bottom outlet Ø75 mm

Capacity 1,8 l/s

B 110

Bottom outlet Ø110 mm

Capacity 1,6 l/s

Trap

Trap included as standard.
Can be retrofitted.

Part no. 126VH2

Trap with odor seal

Trap with mechanical odor seal.

Part no. 126VL12

Closable trap

A trap that can be shut off with a key. When choosing accessories, an extension part is required.

Part no. 126VA2

Strainer basket

Smaller filter basket.

Volume: 2.5 dl
Capacity: 1.2 l/s

Part no. 133SK12

Strainer basket, 5 dl

Filter bucket suitable for drain without a trap and in a drain with additional extension part.

Volume: 5 dl
Capacity: 1.5 l/s

Part no. 133SK22

Lifting tool

Practical and ergonomic lifting hook for easy handling of strainers. Provides a stable grip and simplifies lifting during cleaning and maintenance. Perfect for a smooth and safe workflow.

Part no. 1LK2

Extension part

Provides space for extra-large accessories.
Increases the total height by 60 mm.

Part no. 1VPA126

Inlet part

Inlet part with connection Ø 50 mm.
Increases the total height by 60 mm.

Part no. 1VIN126

Without trap

Floor drain without a trap. The trap can be retrofitted.

Capacity: 4 liters/second.

Part no. 1VSU126

Plastic mounting rod

Mounting rod that allows for easy adjustment from above.

Height: 300 mm
Foot diameter: 100 mm.

Use together with Installation accessories "Bits for plastic mounting rod".

Part no. 1SB40

Bits for plastic mounting rod

For easy height adjustment of plastic mounting rod.

Part no. 1BITS16

Sealant Aqua Tät

Sealant Aqua Tät for plastic flooring. Used under the flooring when installing the clamping frame.

Part no. 1AQUAT40
