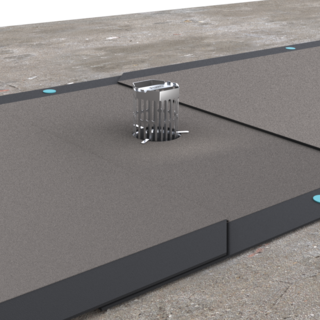

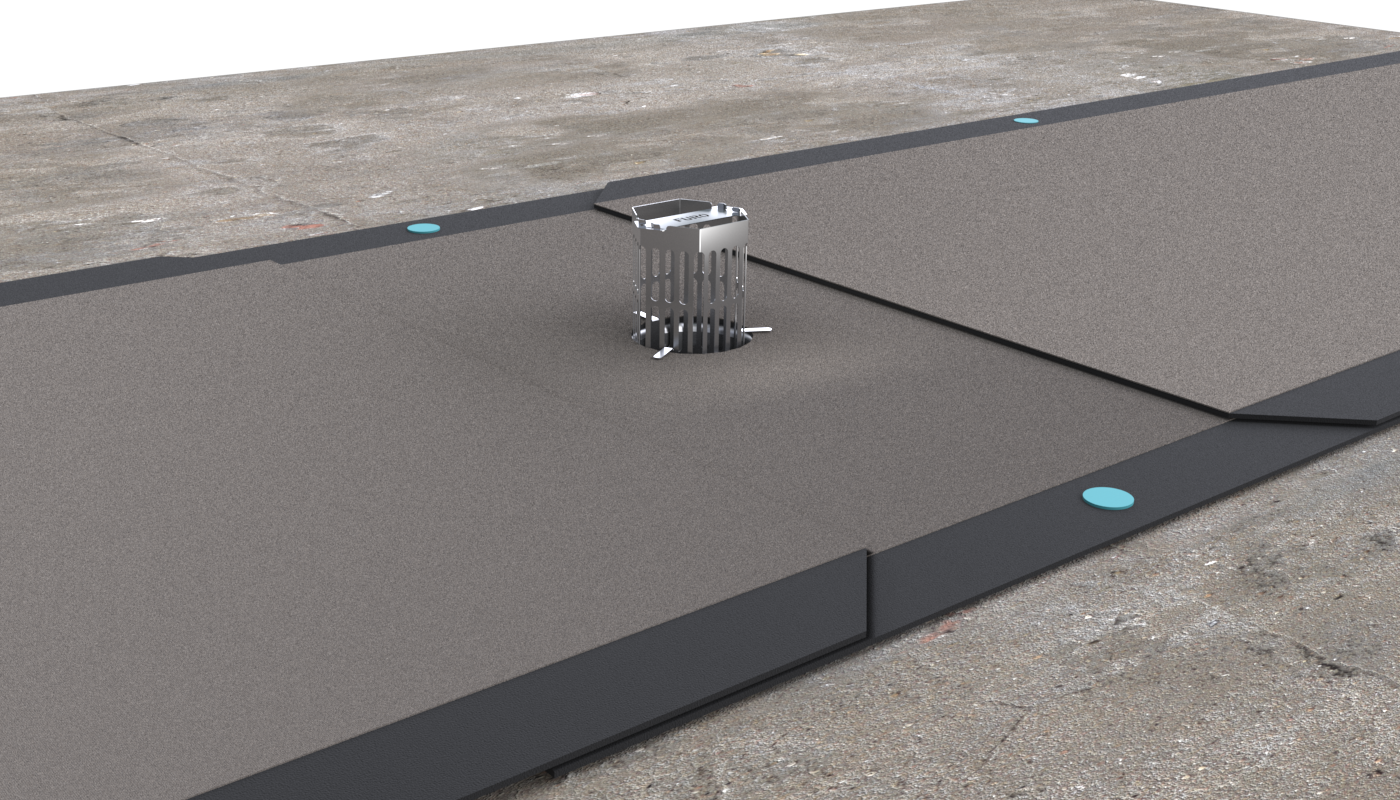

Roof drain FURO 180

Roof drain FURO 180

Roof drain in acid-resistant stainless steel, designed for safe and efficient drainage of flat and low-sloped roofs in gravity drainage systems. Ideal for roofs with bitumen where durability, corrosion resistance, and reliable drainage are essential.
  • For gravity drainage systems – Designed for roof drainage with natural flow on flat and low-sloped roofs.

  • Adjustable outlet pipe – Supplied with a 500 mm long outlet pipe that can be easily cut to the required length.

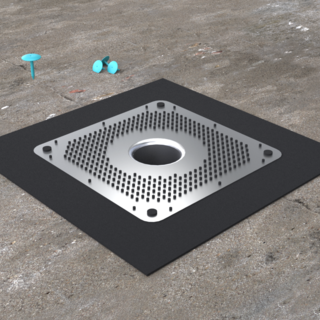

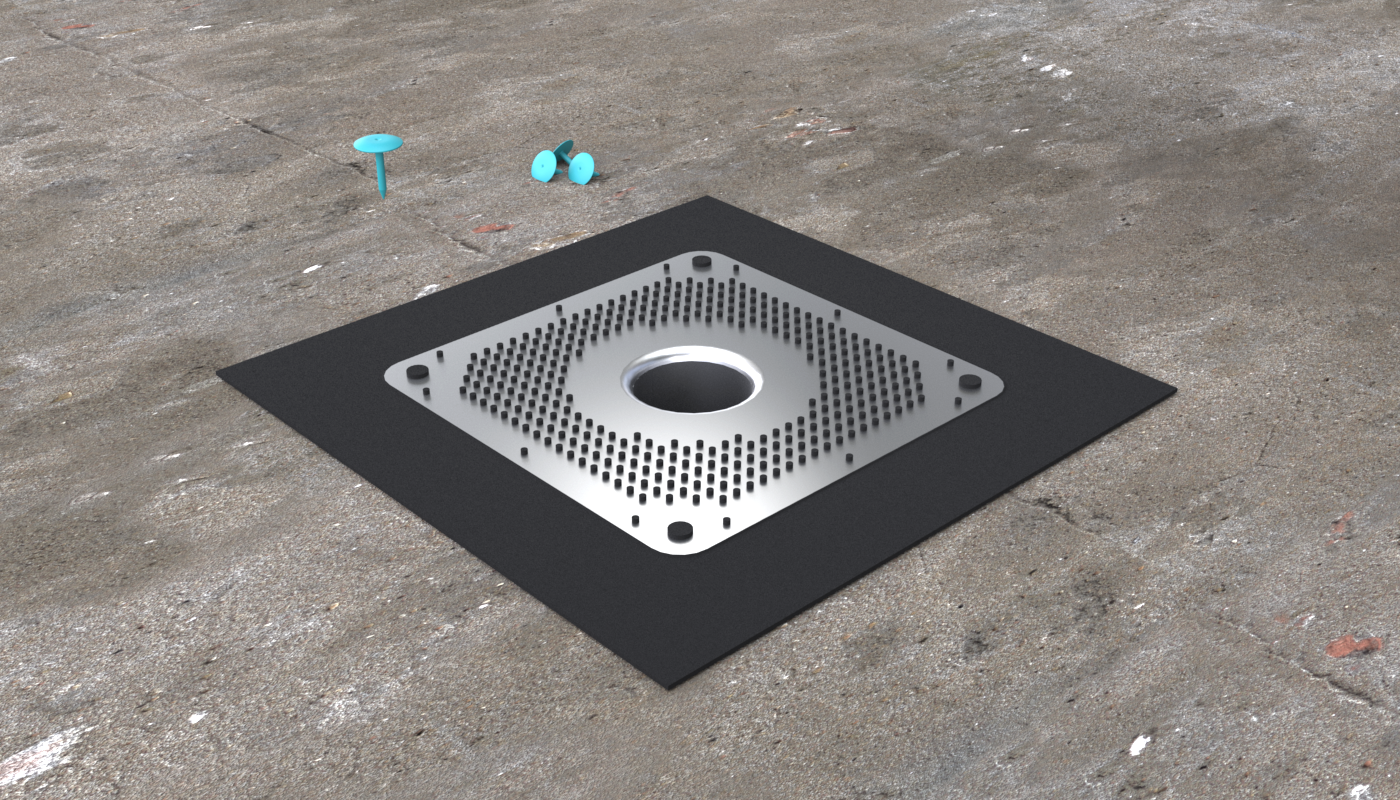

  • Waterproofing flange according to industry standards – 150 mm wide perforated bonding flange, designed for seamless integration with waterproofing layers according to TR-E and HusAMA 2011 (JSE.171 & JSE.471).

  • High-quality material – Manufactured from acid-resistant stainless steel EN 1.4404 (SS 2348) for long service life and excellent corrosion resistance.

  • Leaf guard – Removable strainer prevents clogging and ensures efficient water drainage.

  • Fast delivery – Available in stock for immediate delivery.

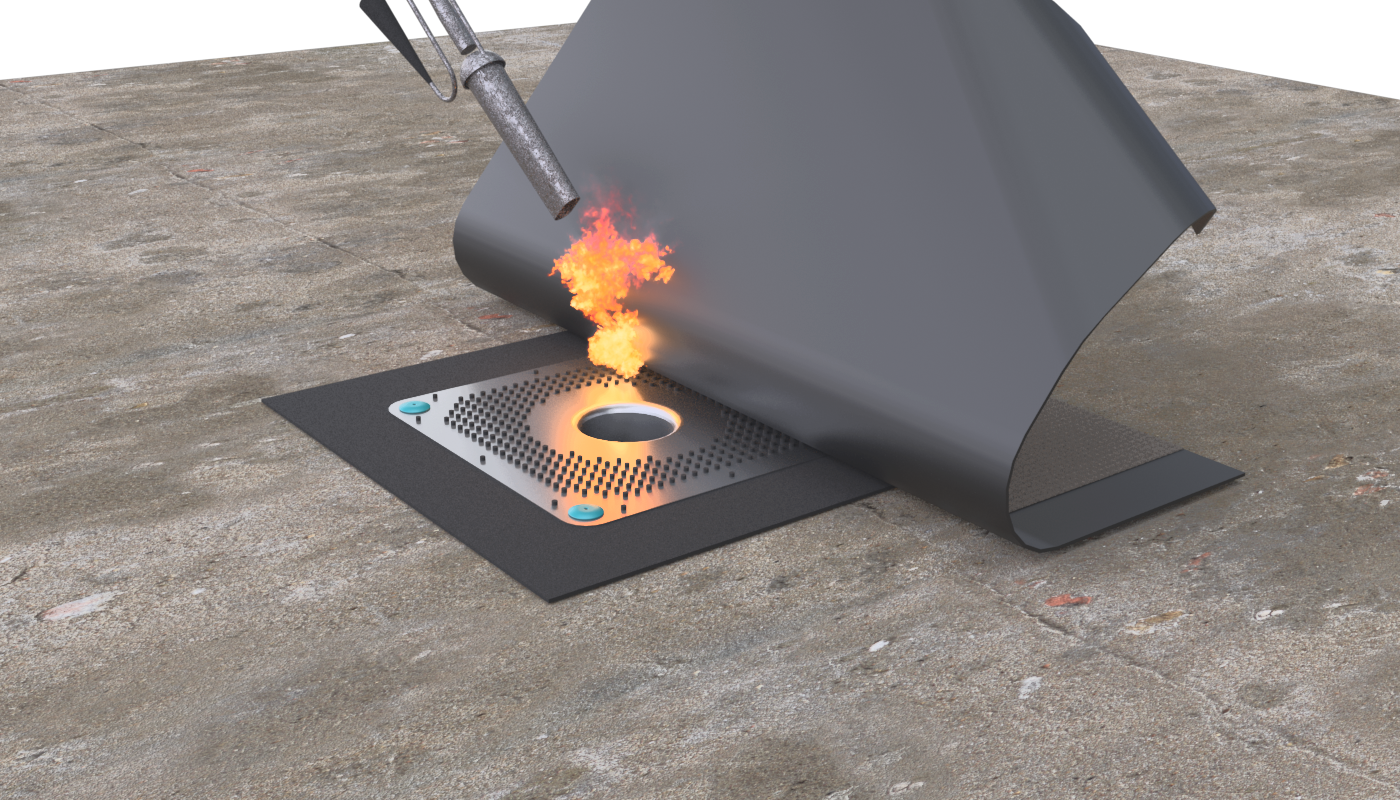

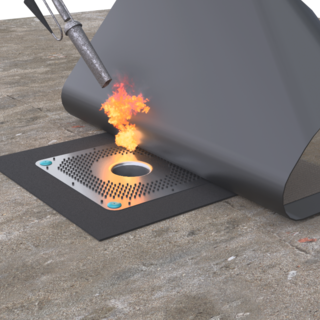

  • Installation – The waterproofing flange is designed for roofs where a waterproofing membrane is first applied locally under the perforated flange and then welded to the bitumen layer on top, ensuring a secure and durable connection.

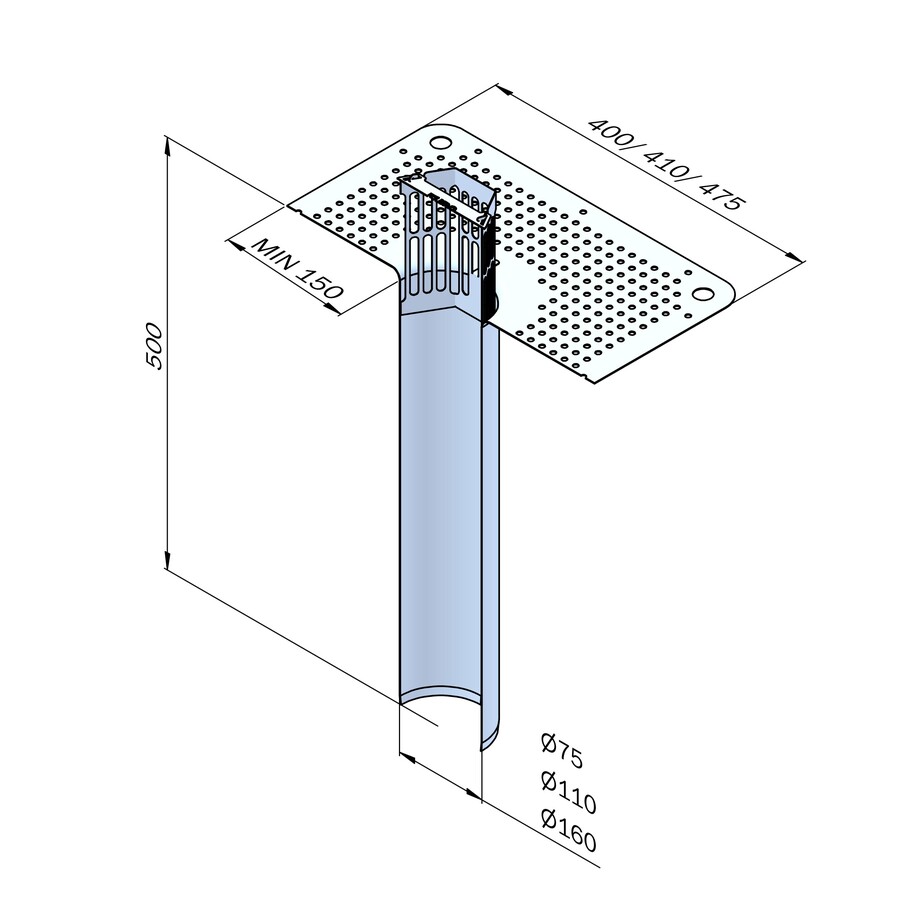

Technical specifications:

Material: Acid-resistant stainless steel EN 1.4404 (SS 2348)
Roof type: Flat and low-sloped roofs with bitumen
System: Gravity drainage system
Outlet pipe: Length 500 mm (cuttable)
Waterproofing flange: 150 mm wide perforated bonding flange
Standards: TR-E, HusAMA 2011 (JSE.171 & JSE.471)
Accessories: Removable leaf guard


Immediate delivery

Variants

Bitumen roof deck

Floor material: Bitumen roof deck
Water proofing: Bitumen
Water proofing drain flange: 150 mm perforated adhesive flange
B 75

Bottom outlet Ø75 mm

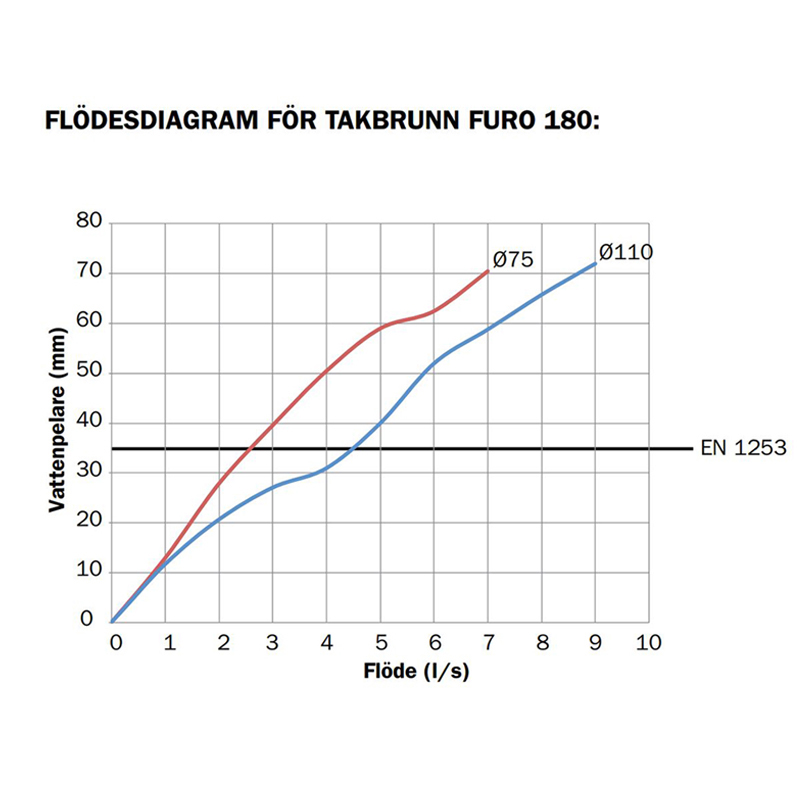

See flowchart

B 110

Bottom outlet Ø110 mm

See flowchart

Electric heating loop, 3 m

Electric heating loop, 3 m

Prevent ice formation with a self-limiting electric heating loop around the outlet.

  • Cable: Delivered pre-assembled with at least 3 meters of electrical cable (without a plug).
  • Power: 20W
  • Connection: Connects to 230 V



For more information:
Product information Electric heating loop

Part no. 1VELS

Electric heating loop, 4-12 m

Electric heating loop, 4-12 m

Prevent ice formation with a self-limiting electric heating loop around the outlet.

  • Cable: Delivered pre-assembled with 4-12 meters of electrical cable (without a plug).
  • Power: 20W
  • Connection: Connects to 230 V



For more information:
Product information Electric heating loop

Part no. 1VELSL

Extended outlet pipe Ø75

Extended outlet pipe Ø75

Outlet pipe Ø75 mm extended by 377 mm. Provides extra flexibility during installation and allows connection even at greater distances to the drainage system.

Part no. Z-FLUR-377-75

Extended outlet pipe Ø110

Extended outlet pipe Ø110

Outlet pipe Ø110 mm extended by 362 mm. Provides extra flexibility during installation and allows connection even at greater distances to the drainage system.

Part no. Z-FLUR-362-110
